Medical Metal Deburring for Precision Device Components
Medical metal parts can often be deburred automatically when material, geometry, burr condition and acceptance criteria are matched to the correct process. Qintellim evaluates R sanding-belt deburring, S rotary-roller-brush edge rounding and, when a visible surface finish is required, a separately selected W polishing or brushing process for stainless steel, aluminum and other precision device components.
Which Medical Metal Components May Need Deburring?
Typical workpieces include instrument housings, equipment panels, brackets, trays, covers, frames and other precision-fabricated components. Common incoming conditions include:

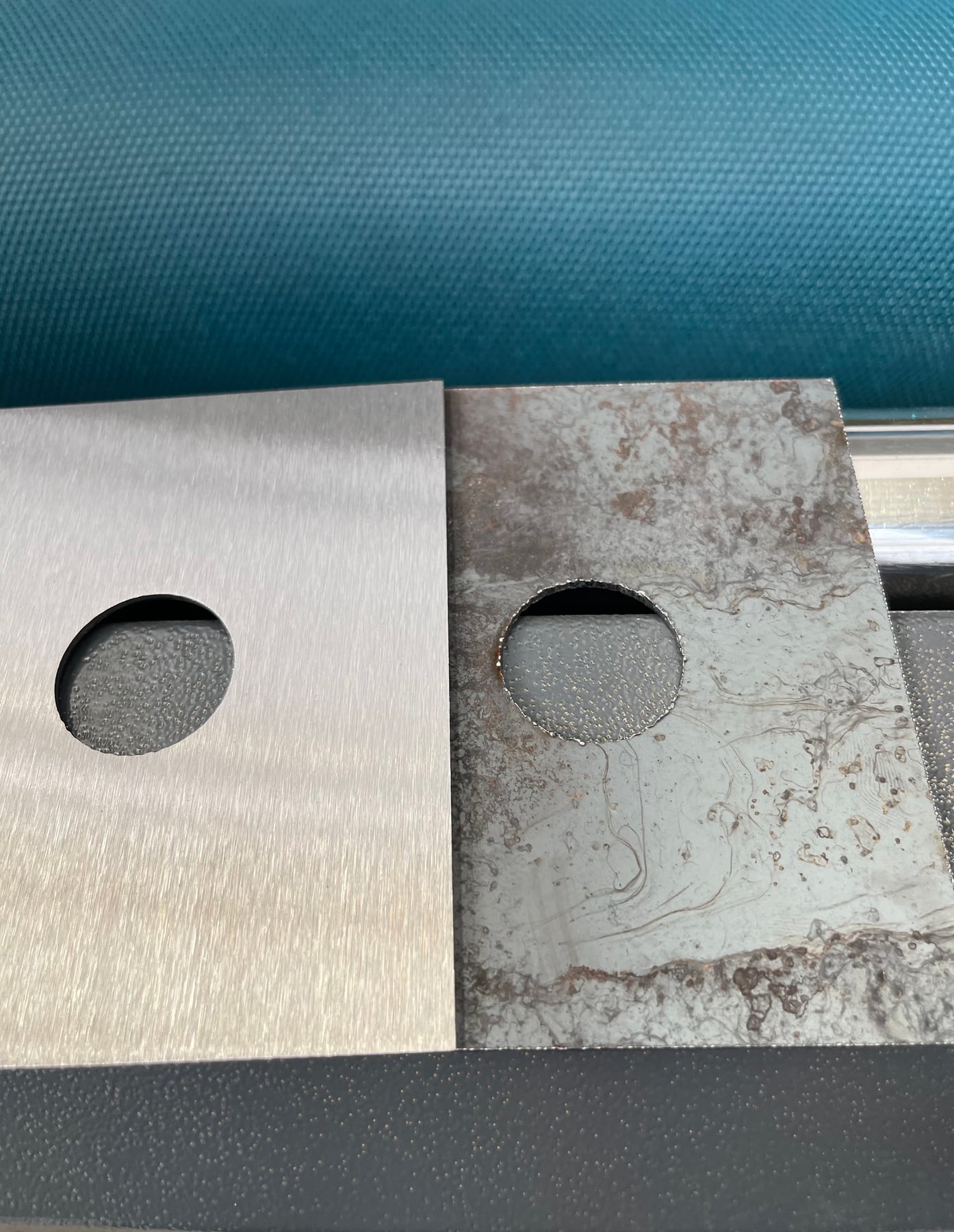

- Micro-burrs around laser-cut edges, holes and slots.
- Sharp stamped or machined edges that require a controlled edge result.
- Surface marks or oxide that must be evaluated before assembly or inspection.
- Variation caused by repeated manual finishing.
- Thin, small or complex parts that require careful workholding and contact control.
Recommended Process Roles
- R deburring station: uses an abrasive sanding belt to remove burrs and prepare the surface.
- S edge rounding station: uses rotary roller brush tooling around external contours, holes and slots.
- W surface finishing station: uses either a polishing roller or a brushing roller according to the required finish. If both brushing and polishing are required, evaluate two W stations.
- Conveyor platform: A is vacuum adsorption, M is magnetic adsorption and A-M has half magnetic adsorption and half vacuum adsorption. Select the platform according to material, workpiece layout and stable holding requirements.
Which Process Should Be Evaluated?
Compare available station combinations in the Qintellim metal deburring and edge finishing machine selection guide.
Information Needed for Sample Testing
- Material and whether it is magnetic.
- Part dimensions, thickness range and workpiece layout.
- Cutting, stamping, machining or forming process.
- Photos showing burrs, sharp edges or surface marks.
- Required edge or surface result and inspection standard.
- Expected batch size and capacity target.
- Special handling, cleanliness or downstream process requirements.
Frequently Asked Questions
Can stainless steel medical equipment parts be deburred automatically?
Many stainless steel components can be evaluated for automated deburring, edge rounding or surface finishing. The suitable process depends on part geometry, burr condition, workholding and required result, so sample testing is recommended.
How can thin or precision parts be protected during processing?
Workpiece holding, conveyor type, contact pressure, abrasive or brush selection and feed speed should be matched to the actual part. Vacuum, magnetic or half-magnetic/half-vacuum platforms are evaluated according to material and layout.
Does machine finishing alone certify a medical component?
No. Deburring and surface finishing are manufacturing steps. Final medical-device compliance depends on the component manufacturer's material controls, process validation, cleaning, inspection, documentation and applicable regulatory requirements.
Request a medical metal sample-test recommendation.
