Rotary Roller Brushes for S-Station Edge Rounding

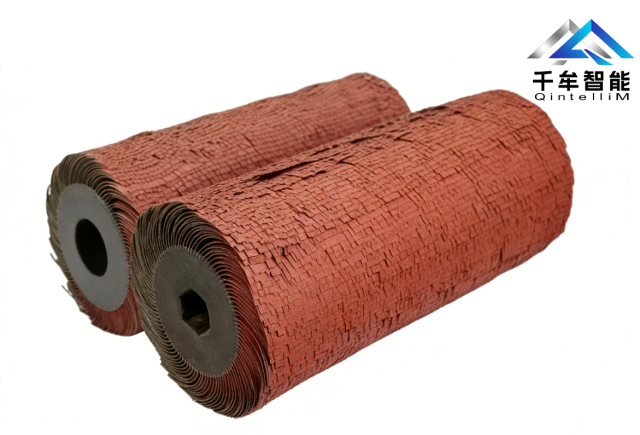

QintelliM rotary roller brushes are S-station tooling for controlled edge rounding around external contours, holes and slots on sheet-metal parts. Select by compatible machine, workpiece material and geometry, brush dimensions, abrasive type and required edge result.
Process distinction: This S-station rotary roller brush is not a C-station steel wire disc brush and is not a W-station brushing or polishing roller. Each tooling type has a separate process role and should be quoted against the actual machine configuration.
Typical Edge-Rounding Applications

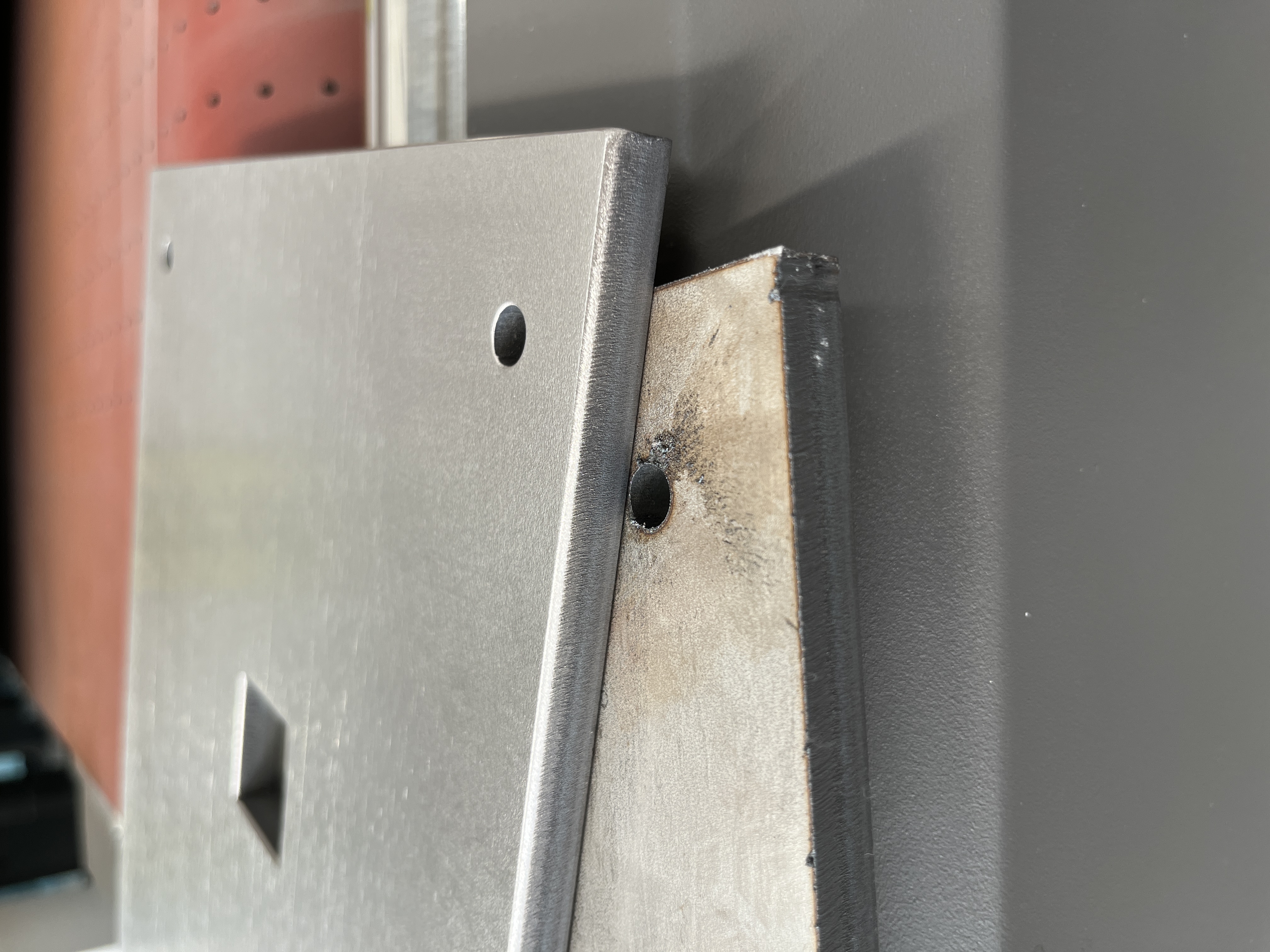

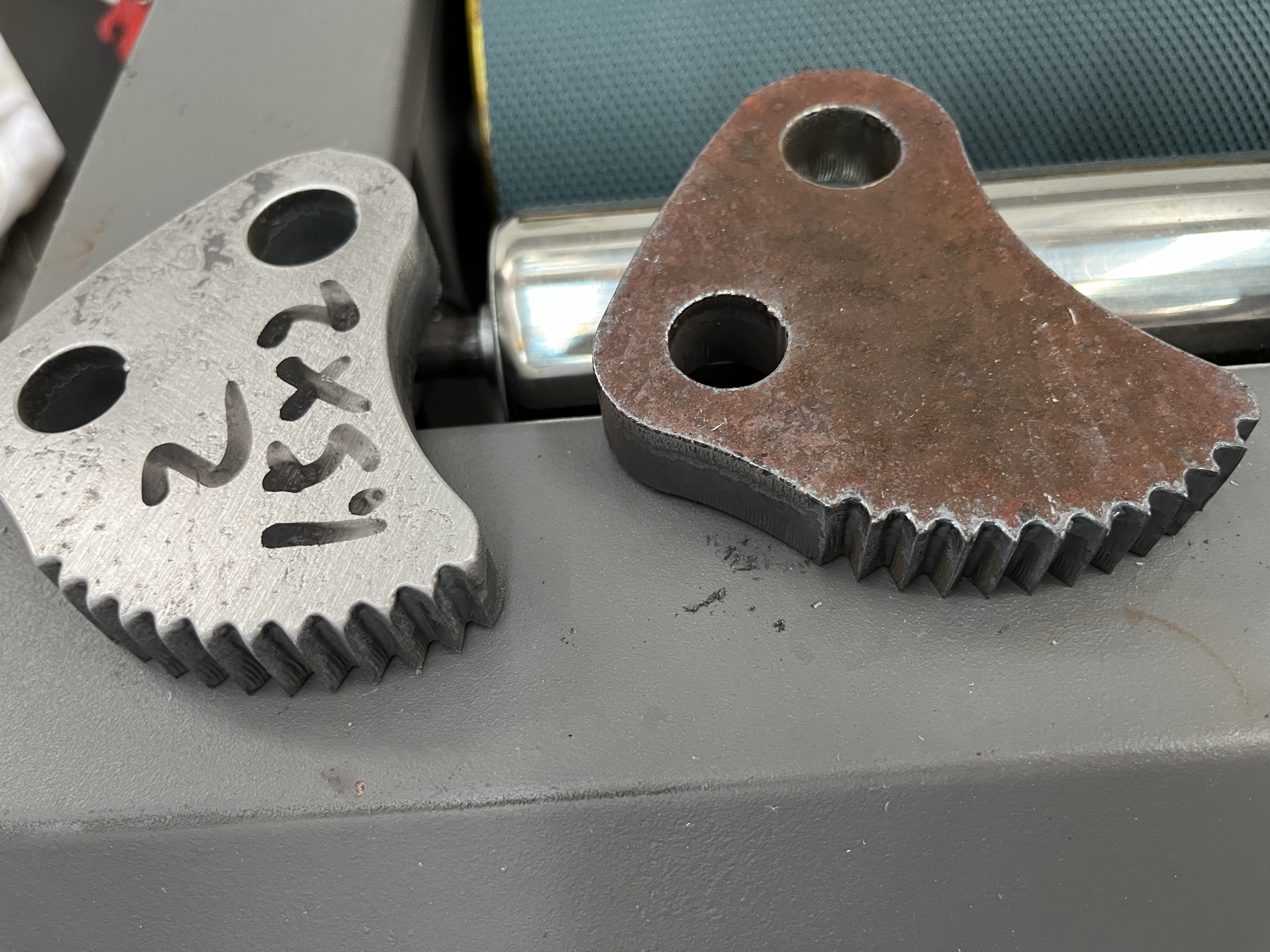

- External contours on laser-cut, punched, stamped, sheared and machined parts.

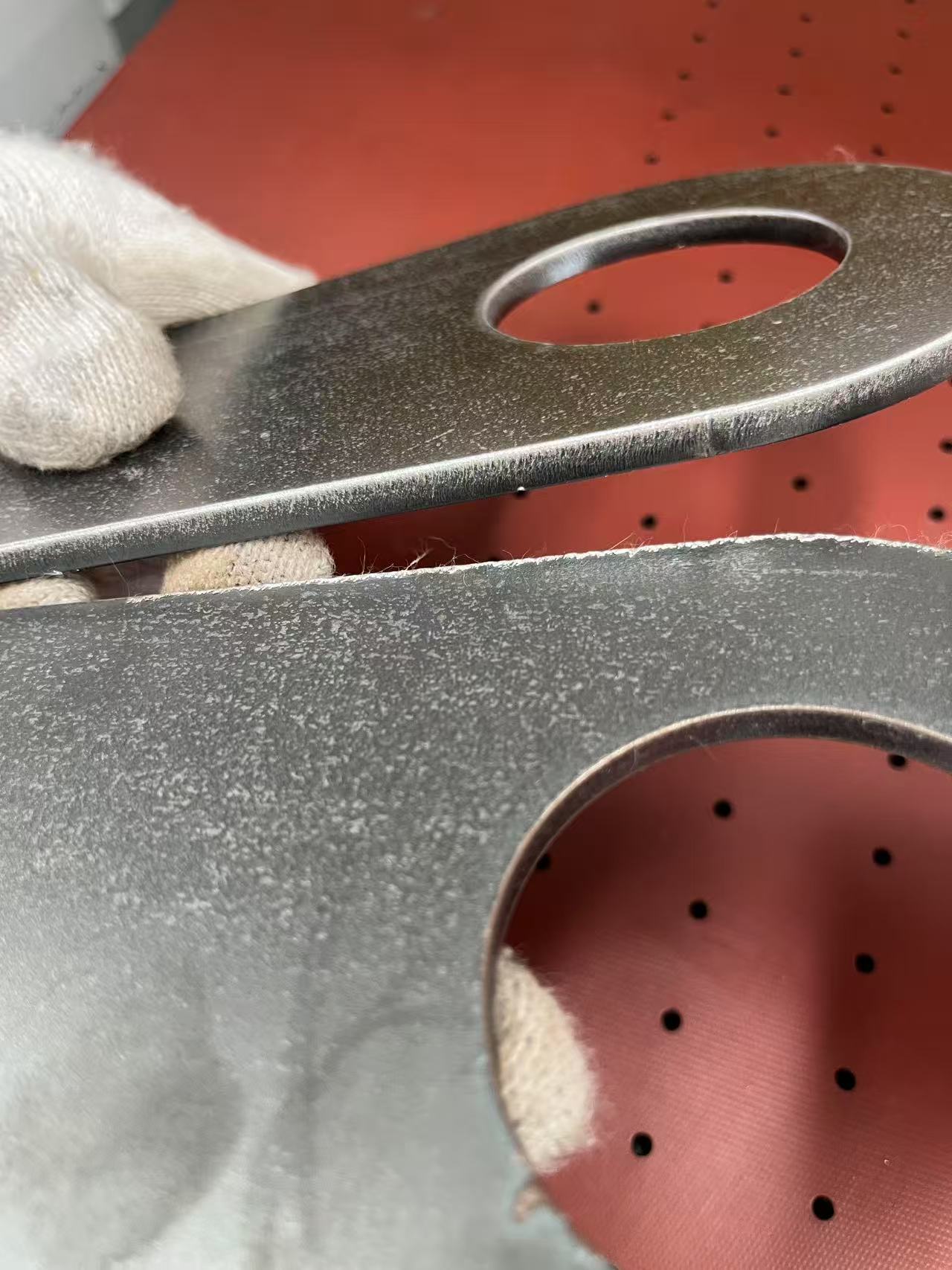

- Hole and slot edges that require a controlled, repeatable edge result.
- Carbon steel, stainless steel, aluminum, copper, brass and other project-specified sheet-metal materials.
What to Confirm Before Selecting a Brush
| Selection factor |
Information needed |
Why it matters |
| Machine configuration |
Machine model and S-station design |
Confirms installation and process compatibility. |
| Brush dimensions |
Diameter, thickness, mounting and working width |
Confirms the correct replacement format. |
| Workpiece |
Material, thickness, size, holes, slots and part geometry |
Guides brush contact and workholding evaluation. |
| Incoming condition |
Cutting process, burr condition and edge geometry |
Defines the edge-rounding task. |
| Target result |
Required edge radius or inspection standard |
Must be confirmed by sample testing. |
Compatible S-Station Configurations

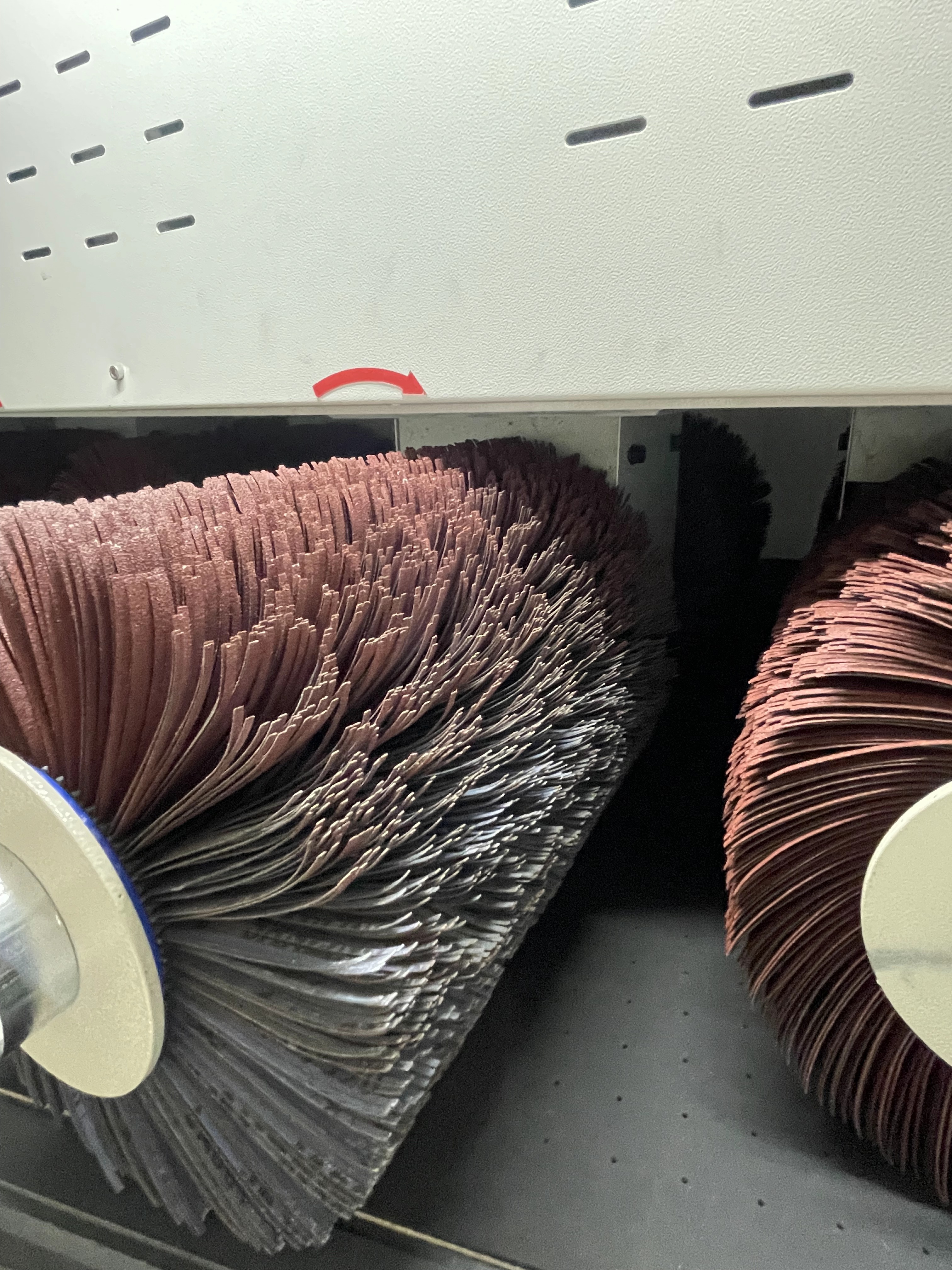

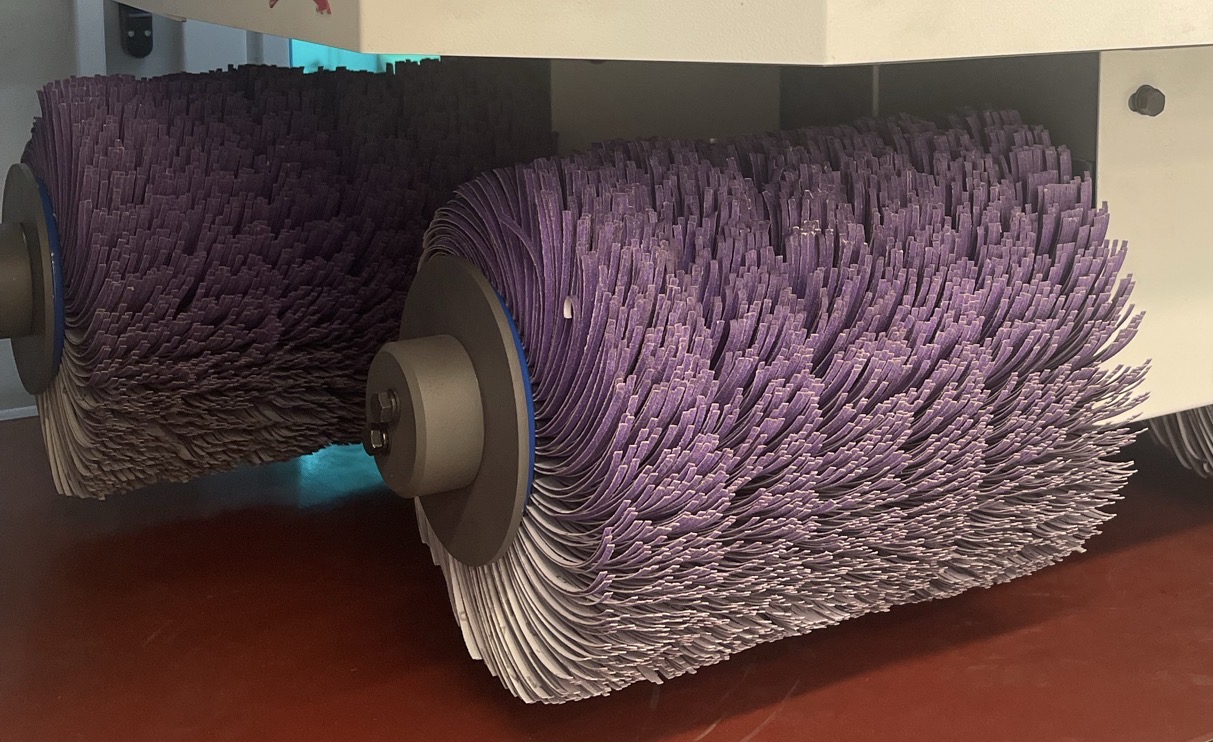

Rotary roller brushes can be evaluated for S-containing configurations including S, RS, RRS, RSR, RSRW, CRS, CRSR, CRSW and CRRSWW, subject to project confirmation. CRSW and CRRSWW can be quoted as current project configurations.
Rotary Roller Brushes in Project and Process Examples
Brush Selection in a European RS Project
Zirconia-alumina rotary roller brushes were specified for this 1000 mm R-R-S project. Manufacturing and export shipment are complete. The case records project-specific brush selection, not a universal replacement specification.
Read the RS Project →
The S Station in a 450RSR-A Demonstration

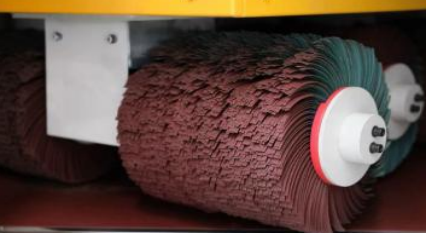

The demonstration shows S rotary roller brush edge rounding between two R abrasive-belt stages on an A vacuum platform. It does not specify the demonstrated brush dimensions, abrasive type or a measured edge radius.
View the Process Demonstration →
Confirm brush dimensions, abrasive selection and edge acceptance against your machine and representative sample parts.
Brush Life and Process Result
Actual brush life and edge result depend on workpiece material, burr condition, brush selection, contact pressure, feed speed, production hours, wear pattern and maintenance. Confirm the required result through sample testing rather than assuming a fixed radius or service life.
Frequently Asked Questions
Is this the same as a steel wire disc brush?
No. This page covers the S-station rotary roller brush for edge rounding. A steel wire disc brush is a C-station tooling option for heavy-slag removal.
Can one brush specification suit every part?
No. Brush dimensions, abrasive type and process settings must be evaluated against the machine, material, geometry and required edge result.
Quotation Checklist
Share the machine model, brush dimensions, material, workpiece thickness, cutting process, burr condition, required edge result, dry or wet operation and expected consumption.
For a replacement brush, also include photos of the existing brush and machine nameplate, the brush part number if available, mounting dimensions and the quantity required. These details help confirm the replacement specification before quotation.
Request a Rotary Roller Brush Quote
