New Energy Metal Deburring and Surface Finishing Solutions
New energy equipment manufacturing uses battery trays, enclosures, frames, brackets, covers, heat-management components and other metal parts produced by laser cutting, punching, stamping, machining, bending and welding. These parts may require controlled burr removal, edge rounding and surface preparation before coating, welding, sealing, assembly or inspection.
Qintellim, a metal deburring and surface finishing equipment manufacturer, configures automated systems for aluminum, carbon steel, stainless steel and customer-validated mixed-material production. Machine selection should be based on the actual part geometry, material, burr condition, required edge result, visible surface and conveyor holding rather than the industry name alone.
Typical New Energy Components and Finishing Challenges
| Component type |
Common finishing issue |
Process objective |
| Aluminum battery trays and enclosures |
Fine burrs, sharp edges, scratches and non-magnetic conveying |
Controlled deburring and edge rounding with suitable vacuum adsorption |
| Steel frames and structural brackets |
Laser-cut burrs, oxide residue and sharp contours |
Prepare consistent edges and surfaces before welding, coating or assembly |
| Heat-management plates and covers |
Fine burrs around holes, slots and cutouts |
Reduce burrs while protecting flatness and functional surfaces |
| Visible cabinets and equipment panels |
Uneven brushing direction, scratches or inconsistent appearance |
Add the required W brushing or polishing process after deburring |
Recommended R, S and W Station Combinations
An R deburring station uses sanding belt consumables for initial burr removal and surface preparation. An S edge-rounding station uses rotary roller brush tooling to create more consistent rounded edges around external contours and accessible internal features. A W station uses a brushing roller or polishing roller for the selected surface finish.
- R-S: suitable for many laser-cut or punched parts requiring burr removal and edge rounding.
- R-R-S: considered when stronger or two-stage deburring is required before edge rounding.
- R-S-W: used when deburring, edge rounding and final brushing or polishing are needed in one line.
- R-R-W: used for stronger deburring followed by a visible brushing or polishing process when S edge rounding is not specified.
The S station performs edge rounding, not chamfering. If a drawing requires a true machined chamfer, the manufacturer must use a process designed for that geometry.
Conveyor Selection for Aluminum and Mixed Materials
Many new energy components are aluminum or include thin non-magnetic panels. An A vacuum adsorption platform can hold suitable non-magnetic parts when the workpiece provides enough flat contact area. An M magnetic adsorption platform is used for compatible ferrous steel parts. An A-M combined platform has half magnetic adsorption and half vacuum adsorption, making it suitable for workshops that process a wider range of materials.
Vacuum holding must be validated for parts with large openings, deep forming, limited flat area or small dimensions. The smallest part and worst-case geometry should be included in sample testing.
Recommended Equipment for New Energy Metal Parts
Surface Preparation Before Welding, Coating and Assembly
Deburring and edge rounding can create a more repeatable starting condition for later operations, but they do not replace application-specific cleaning, chemical pretreatment, sealing, welding preparation or coating validation. The required edge and surface result must be defined from the drawing, coating system and assembly process.
For visible enclosures, W tooling should be selected from the required grain, roughness and appearance. If both brushing and polishing are required, two W stations may be needed. The sequence and consumables must be confirmed through sample testing.
Dust Collection for New Energy Material Processing
Dust-collection selection depends on workpiece material, particle condition, dry or wet processing, machine configuration and local safety requirements. Aluminum and mixed-metal dust require application-specific review. Qintellim should not recommend a dust collector until the material, dust load, connected equipment and local rules have been confirmed.
See the Qintellim dust collection and filtration systems and the guide to wet vs dry deburring process selection.
Frequently Asked Questions
Can thin aluminum battery tray components be deburred automatically?
They may be suitable when the vacuum adsorption area, part flatness, processing pressure and feed stability are verified with representative samples. Large cutouts, formed areas and limited contact surfaces can change holding performance.
Can one machine process aluminum and steel new energy parts?
It may be possible with suitable consumables, an A-M combined platform and a dust-management plan, but the process must be validated for cross-material production. Separate consumables or cleaning procedures may be required depending on the surface target.
Does machine finishing certify battery safety or new energy compliance?
No. Qintellim equipment performs metal deburring and surface finishing. It does not by itself certify battery safety, electrical insulation, sealing performance, structural compliance or final product acceptance. These requirements remain under the manufacturer's engineering and quality process.
Information Needed for a New Energy Parts Recommendation
- Part type, material and material condition.
- Minimum and maximum dimensions, thickness and weight.
- Cutting, punching, stamping, machining or forming process.
- Photos of the burr, edge, openings and visible surfaces.
- Required edge result, surface finish and downstream operation.
- Daily volume, working width, automation and dust-collection needs.
Send Qintellim representative new energy metal parts for a sample-testing plan and a suitable station and conveyor-platform recommendation.

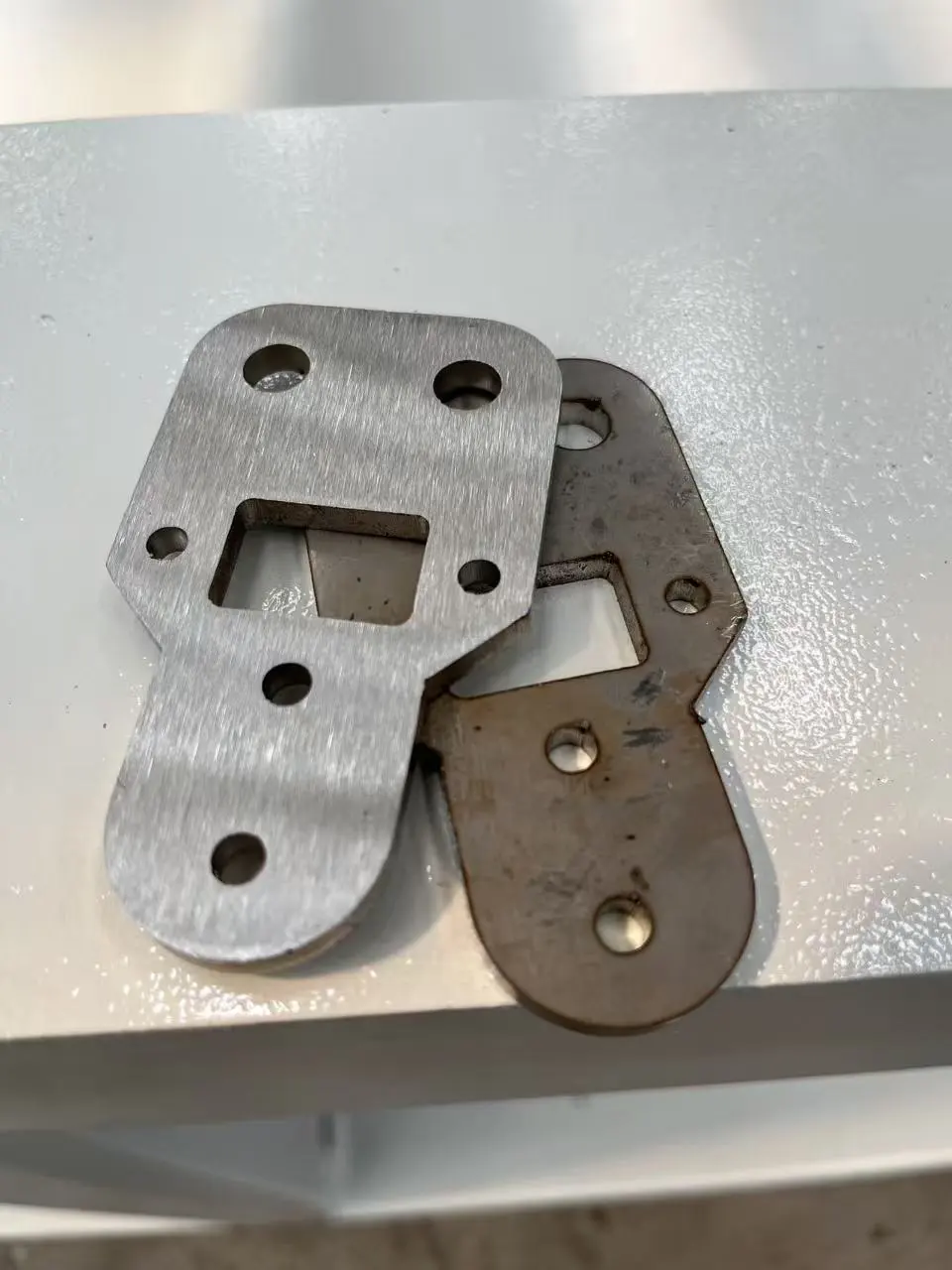

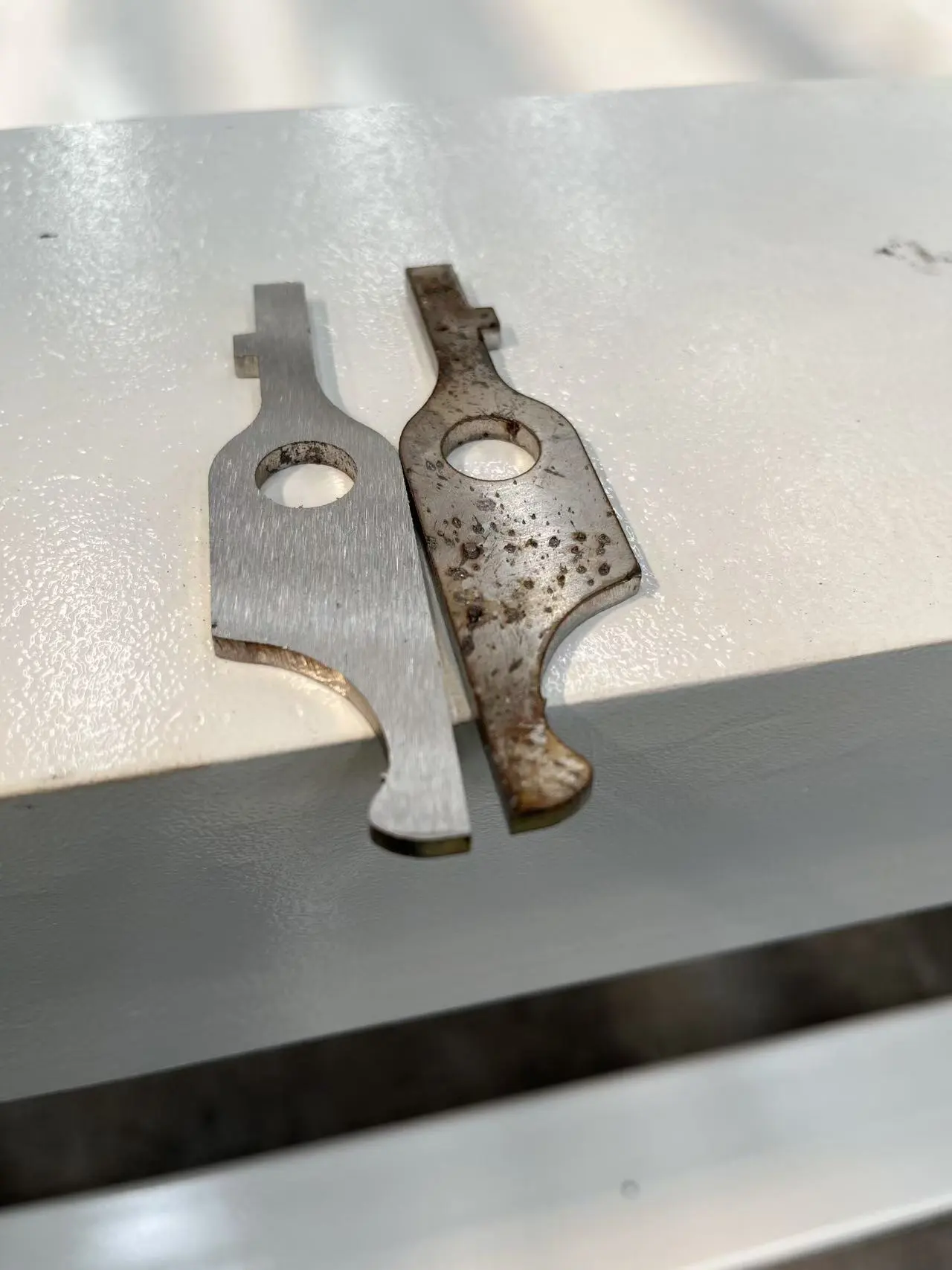

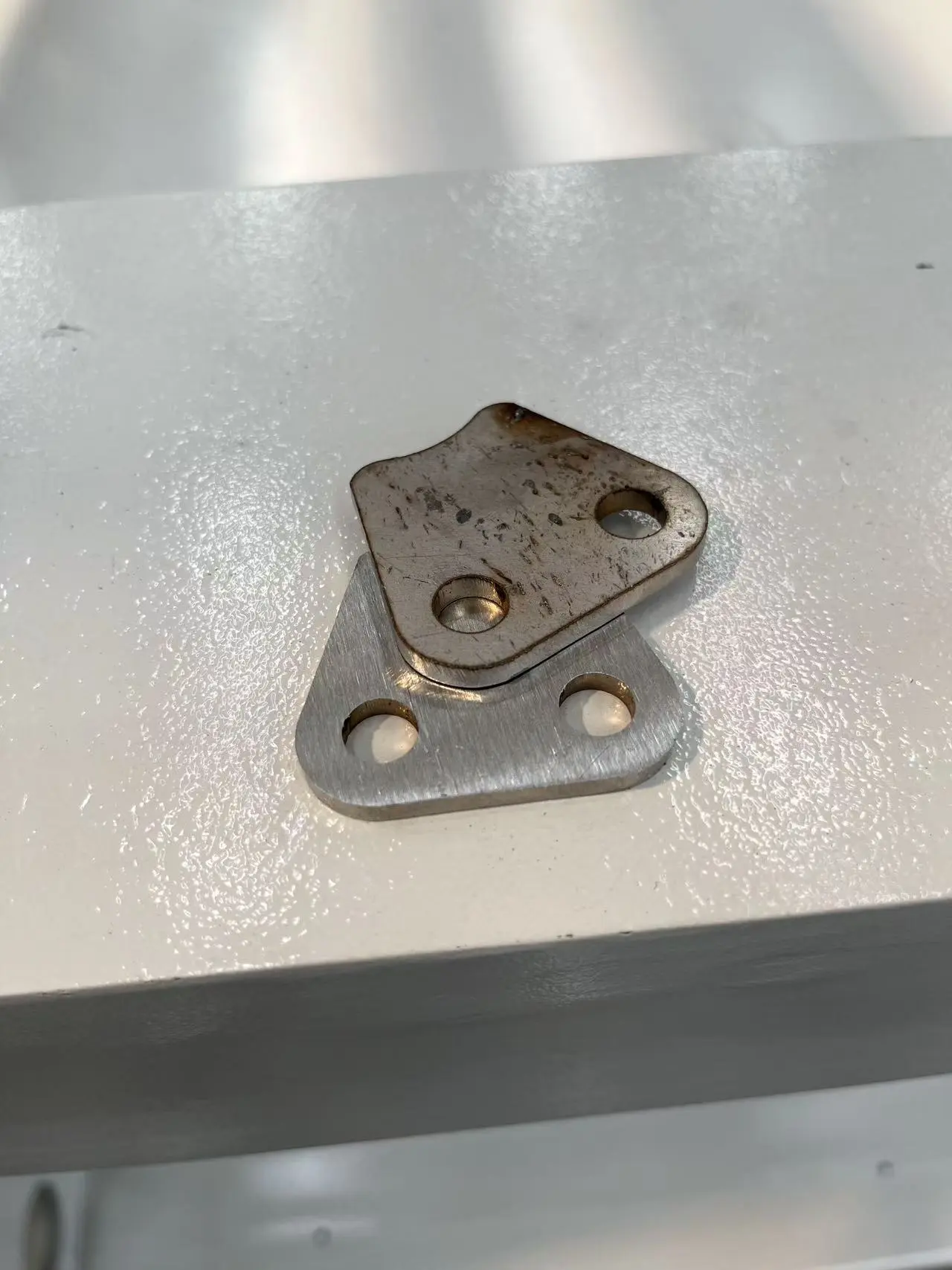

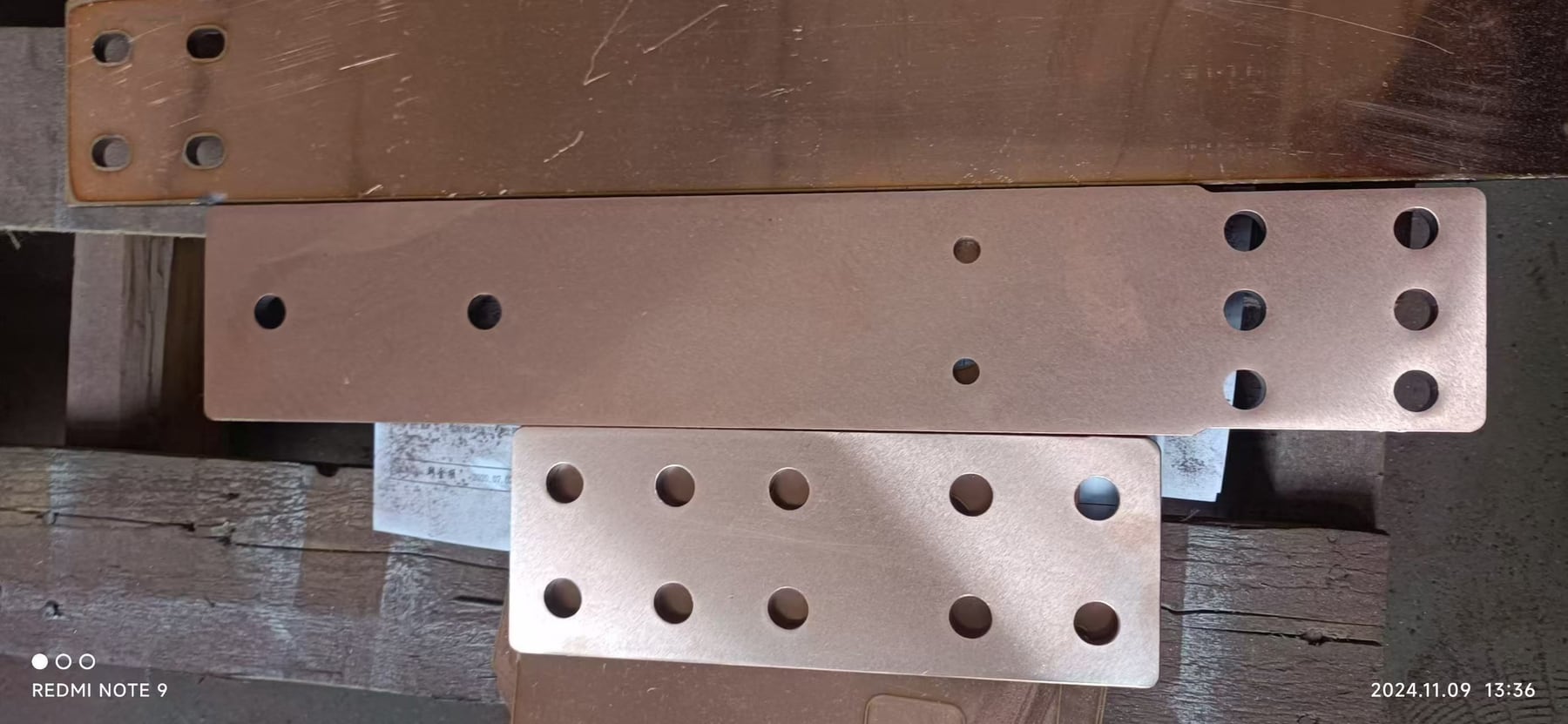

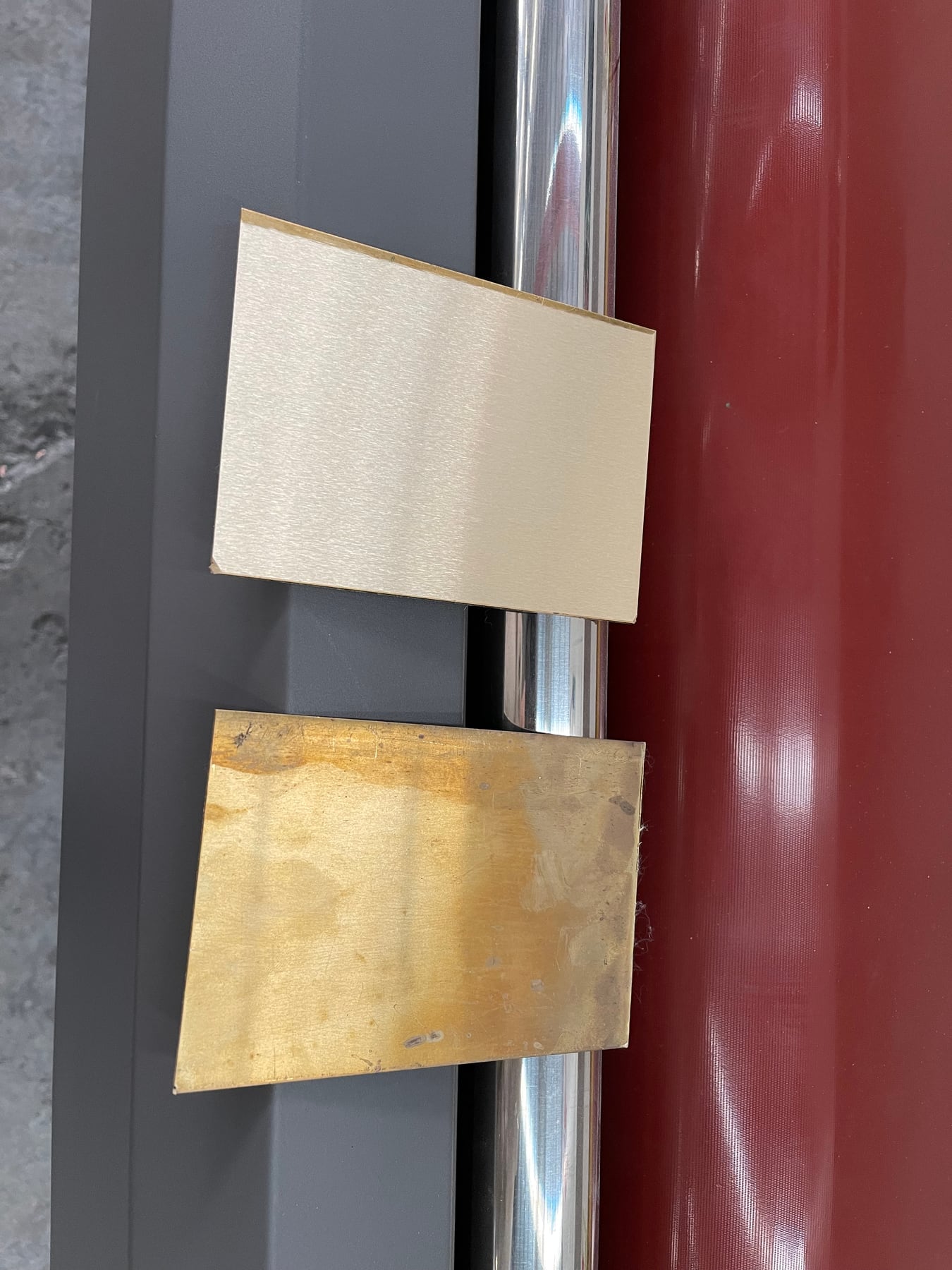

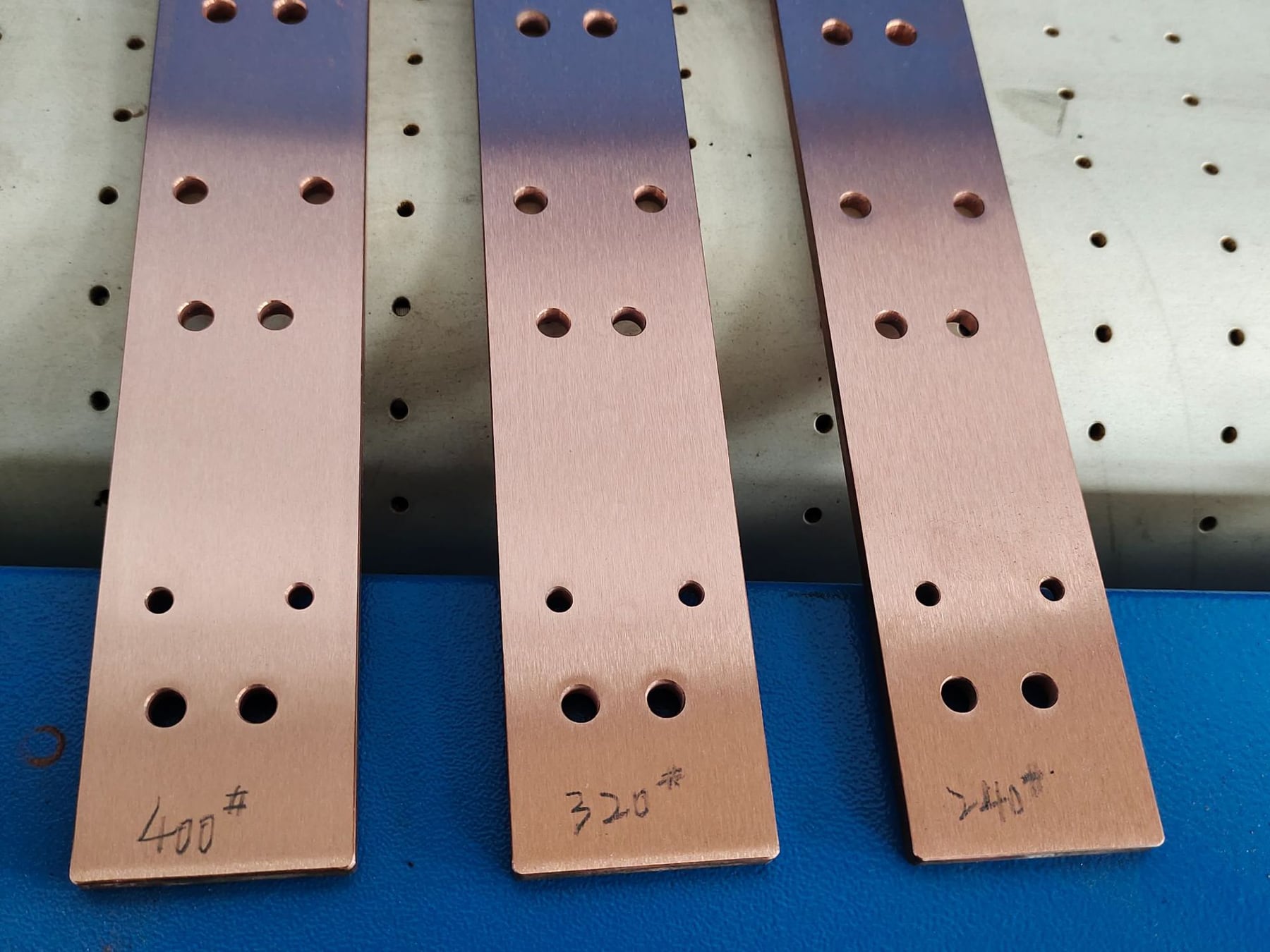

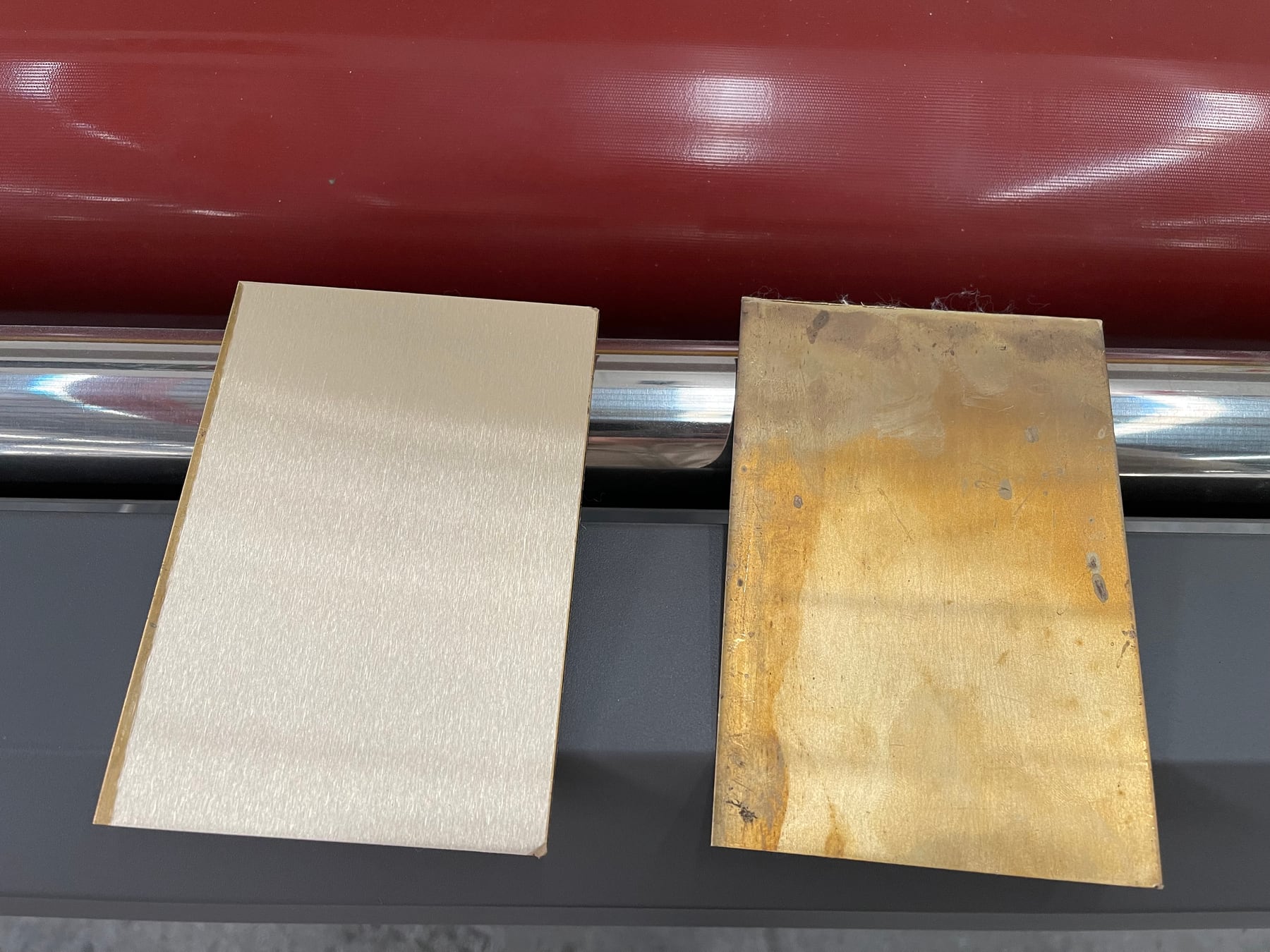

Application Images
