Automotive Parts Deburring and Edge Rounding Solutions
Automotive component production includes stamped brackets, laser-cut panels, frames, covers, housings and other metal parts that may require burr removal, edge rounding and surface preparation before welding, coating or assembly. Batch consistency is important because the same part may be produced in large quantities and inspected at several later operations.
QintelliM, a metal deburring and surface finishing equipment manufacturer, configures automated systems for carbon steel, stainless steel, aluminum and other customer-validated metal parts. The process is selected according to the forming or cutting method, material, burr condition, part geometry, visible-surface requirement and conveyor holding.
Typical Automotive Metal Parts and Finishing Needs
Part type
Common issue
Finishing objective
Stamped brackets and reinforcement parts
Directional burrs, sharp lower edges and local forming marks
Remove burrs and create consistent edge rounding before handling or assembly
Laser-cut panels, frames and blanks
Cutting burrs, oxide residue and sharp contours
Prepare safer edges and a repeatable surface for welding or coating preparation
Aluminum covers and enclosures
Fine burrs, scratches and unstable magnetic holding
Use suitable vacuum adsorption and controlled processing pressure
Visible trim or decorative metal parts
Inconsistent brush marks or surface appearance
Add the required W brushing or polishing process after primary deburring
Station Selection for Automotive Parts
An R station uses sanding belt consumables to remove cutting or stamping burrs and prepare the surface. An S station uses rotary roller brush tooling for edge rounding around external contours and accessible internal features. A W station uses a brushing roller or polishing roller when a defined visual finish is required.
R-S: general burr removal followed by controlled edge rounding.
R-R-S: stronger or two-stage deburring before edge rounding.
R-S-W: deburring, edge rounding and a final brushed or polished finish.
R-R-W: two deburring stages followed by brushing or polishing when edge rounding is not specified.
The sequence is not selected from the industry name alone. A stamped bracket, an aluminum cover and a visible stainless panel can require different consumables, pressure, feed speed and station combinations.
Conveyor Platform for Mixed Automotive Materials
A vacuum adsorption: for suitable aluminum, non-magnetic or thin components with enough contact area for stable holding.
M magnetic adsorption: for compatible ferrous brackets, panels and frames.
A-M combined platform: combined magnetic and vacuum holding, with project-specific layouts and effective holding areas confirmed for the actual workpieces and applications.
Part size, flatness, holes, cutouts and the smallest contact area must be reviewed. Small or formed automotive components should be sample tested because conveyor stability can be more important than nominal machine width.
Process Control Before Welding, Coating and Assembly
Automated finishing can reduce variation caused by manual grinding, but the required burr limit, edge result and surface condition must be defined by the manufacturer. The selected process should be checked with the actual downstream operation. For example, coating preparation may require both edge consistency and a controlled surface, while an assembly part may focus on burr removal and dimensional protection.
QintelliM recommends documenting the test settings, consumable specification, feed direction and inspection method after an acceptable sample result is achieved. Consumables should be monitored because belt and brush wear can change the finishing result over time.
Sample Testing Checklist
Representative parts from normal and worst-case burr conditions.
Material, thickness, heat treatment or coating condition if relevant.
Cutting, punching, stamping or machining method.
Required edge result and areas that must not be processed.
Visible-surface direction, scratch limit and downstream operation.
Smallest part size, expected throughput and loading method.

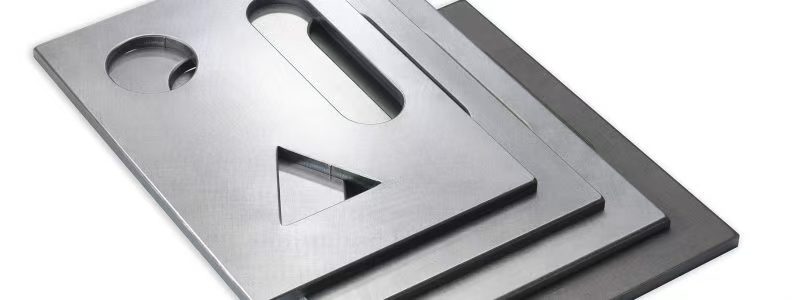

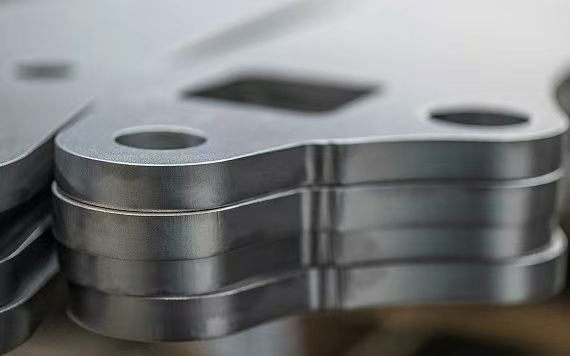

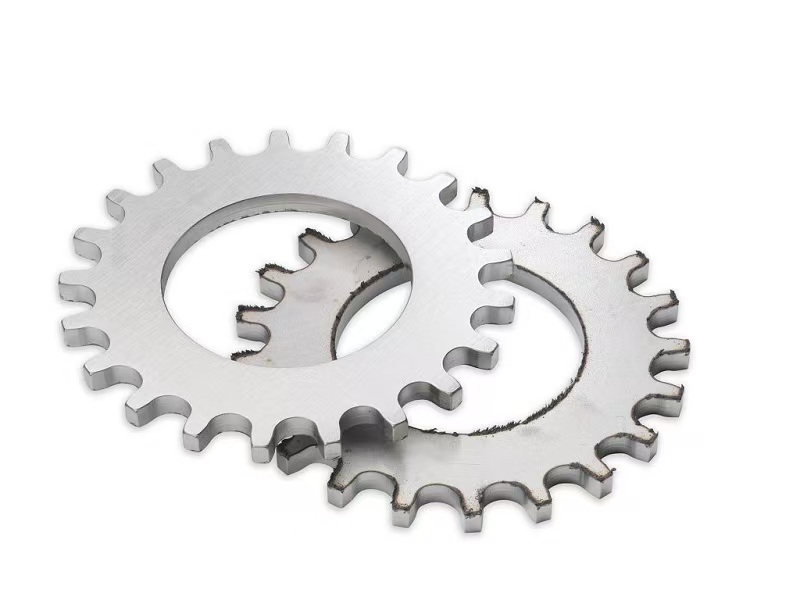

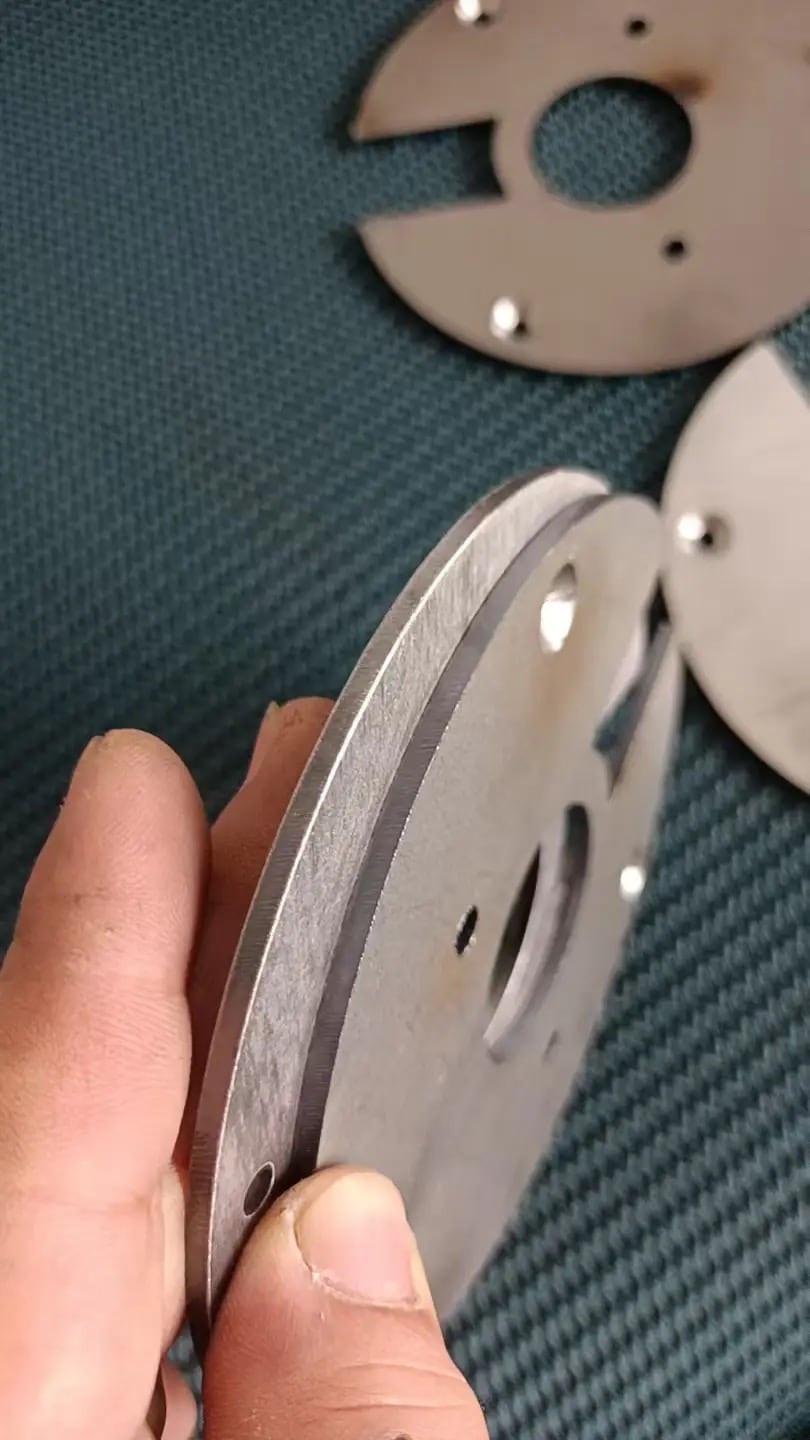

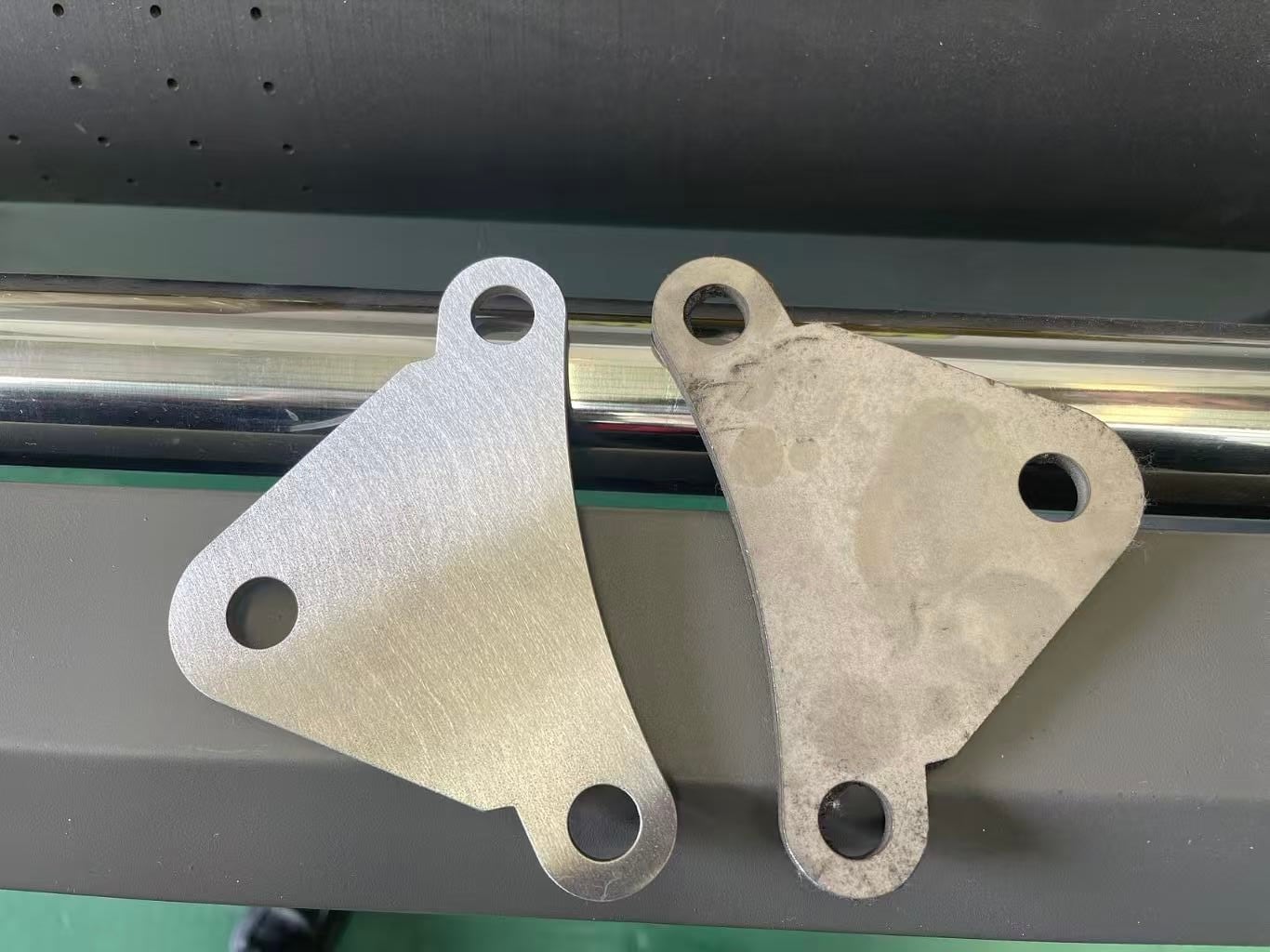

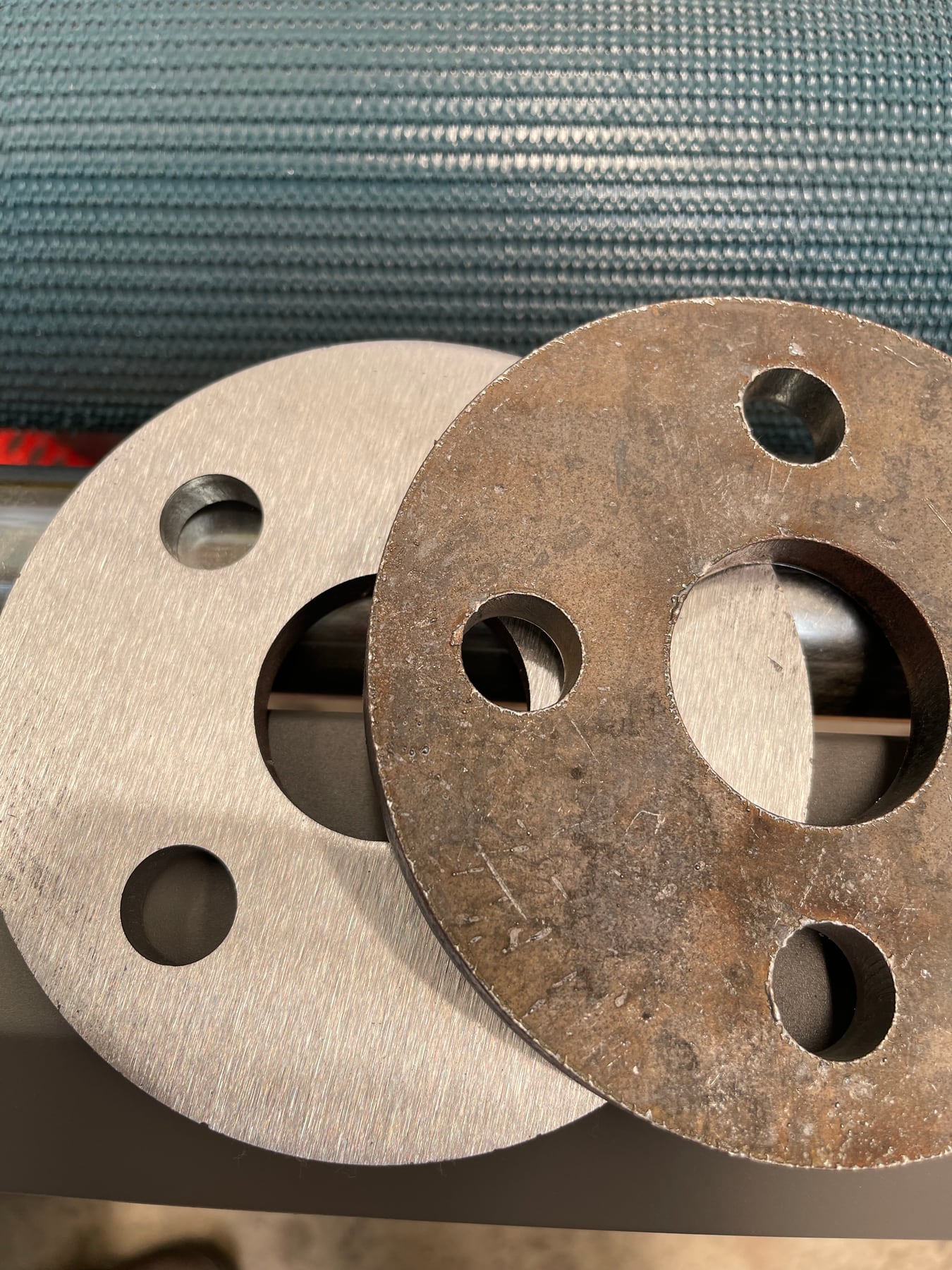

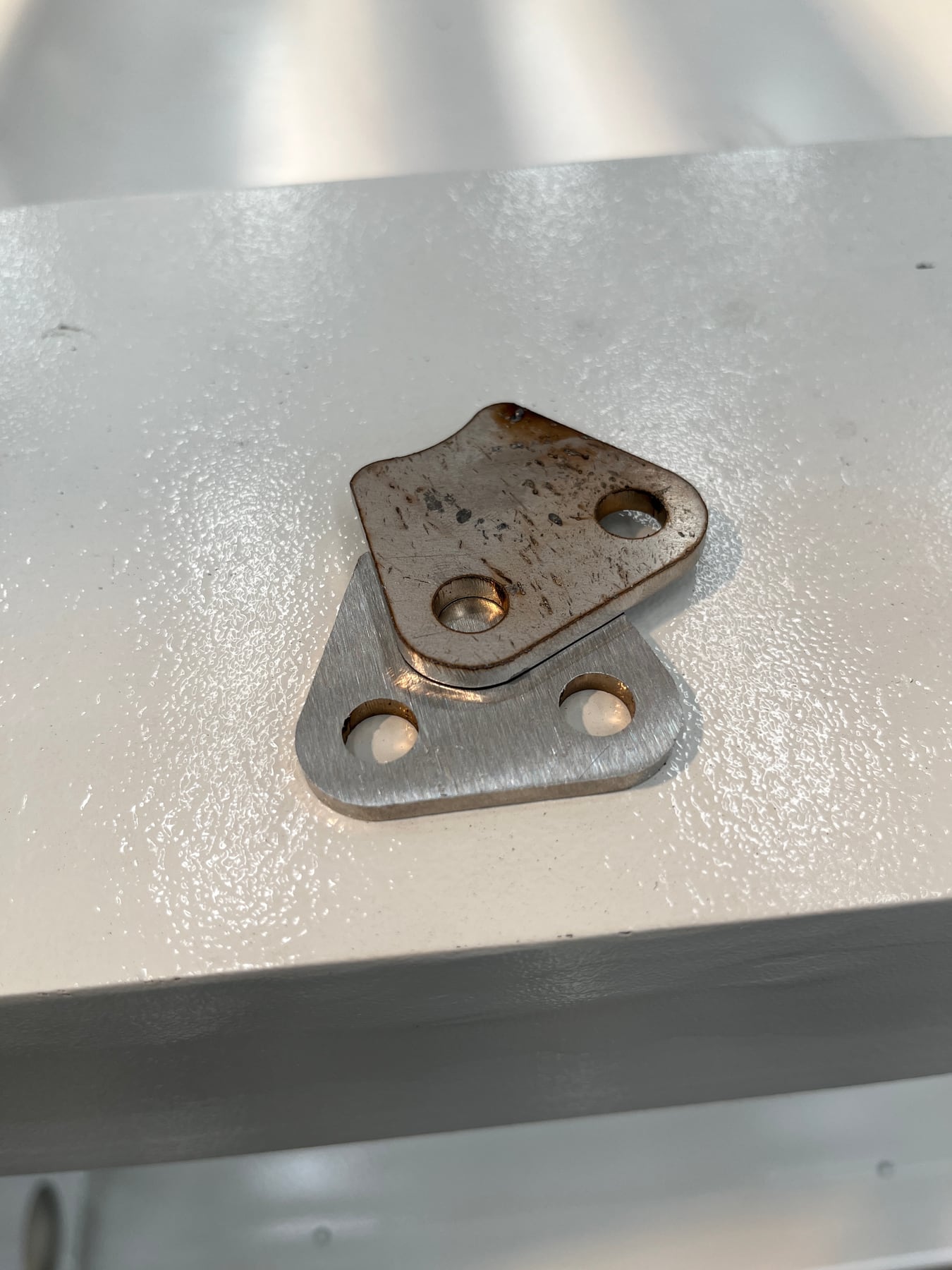

These photographs illustrate sample appearance. Material grade, dimensions, edge radius and surface requirements should be confirmed through sample evaluation and inspection.
Can one deburring machine handle stamped and laser-cut automotive parts?
It may be possible when the burr range, part geometry, material and conveyor holding are compatible. Different part families can still require different sanding belts, rotary roller brushes, feed settings or station sequences.
Can edge rounding support coating preparation?
Consistent edge rounding can support more uniform coating coverage around sharp contours, but it does not guarantee coating adhesion or corrosion performance. The coating supplier and automotive manufacturer must define and verify the complete preparation process.
Does QintelliM equipment certify an automotive component?
No. The machine performs deburring and surface finishing. It does not by itself certify dimensional conformity, automotive quality-system compliance, functional safety or final part acceptance. Those requirements remain under the manufacturer's quality process.
Information Needed for an Automotive Parts Recommendation
Part drawings or clear photos, including both sides.
Material, thickness range and part dimensions.
Stamping, laser cutting, punching or machining process.
Burr height, edge requirement and visible-surface target.
Downstream welding, coating or assembly operation.
Required cycle time, daily volume and automation level.
Recommended Finishing Workflow for This Application
Use the information below to match the case application with a practical QintelliM deburring, edge rounding, grinding, brushing, slag removal, oxide removal or dust collection configuration.
Burrs after laser cutting, sharp outer edges, small inner holes, oxide layers before coating, inconsistent manual grinding and dust safety risks.
BurrsSharp EdgesOxide Layer
Recommended Processes
Combine abrasive belt grinding, edge rounding brushes, brushing or polishing rollers, heavy-slag removal and dust collection according to the real workpiece condition.
DeburringEdge RoundingSurface Finishing
Selection Information Needed
Share material, cutting method, thickness, workpiece size, burr condition, required finish, capacity target, dust characteristics and local project requirements for wet dust collection review.
MaterialSizeCapacity
QintelliM Station Logic
Configurations can be adjusted with process stations and conveyor platforms to fit different industries and workpiece requirements. Working widths can be customized at 450 / 630 / 800 / 1000 / 1300 / 1600 mm.
RAbrasive belt grinding for burr and oxide removal.
SBrush edge rounding for outer edges and inner holes.
CAlloy hammer station for heavy slag removal.
WBrushing or polishing roller for surface finishing.
AVacuum conveyor platform for non-magnetic parts.
MMagnetic conveyor platform for carbon steel parts.
A-MHybrid platform for mixed material production.
DustWet dust collection configuration for the actual machine and application.
QintelliM currently supplies wet dust collection systems only. For QintelliM deburring, grinding, edge-rounding and surface-finishing machine projects, wet dust collection is our current standard recommended solution. Final dust-control configuration depends on the actual material, dust characteristics, machine process, system design, installation conditions and applicable local requirements.
