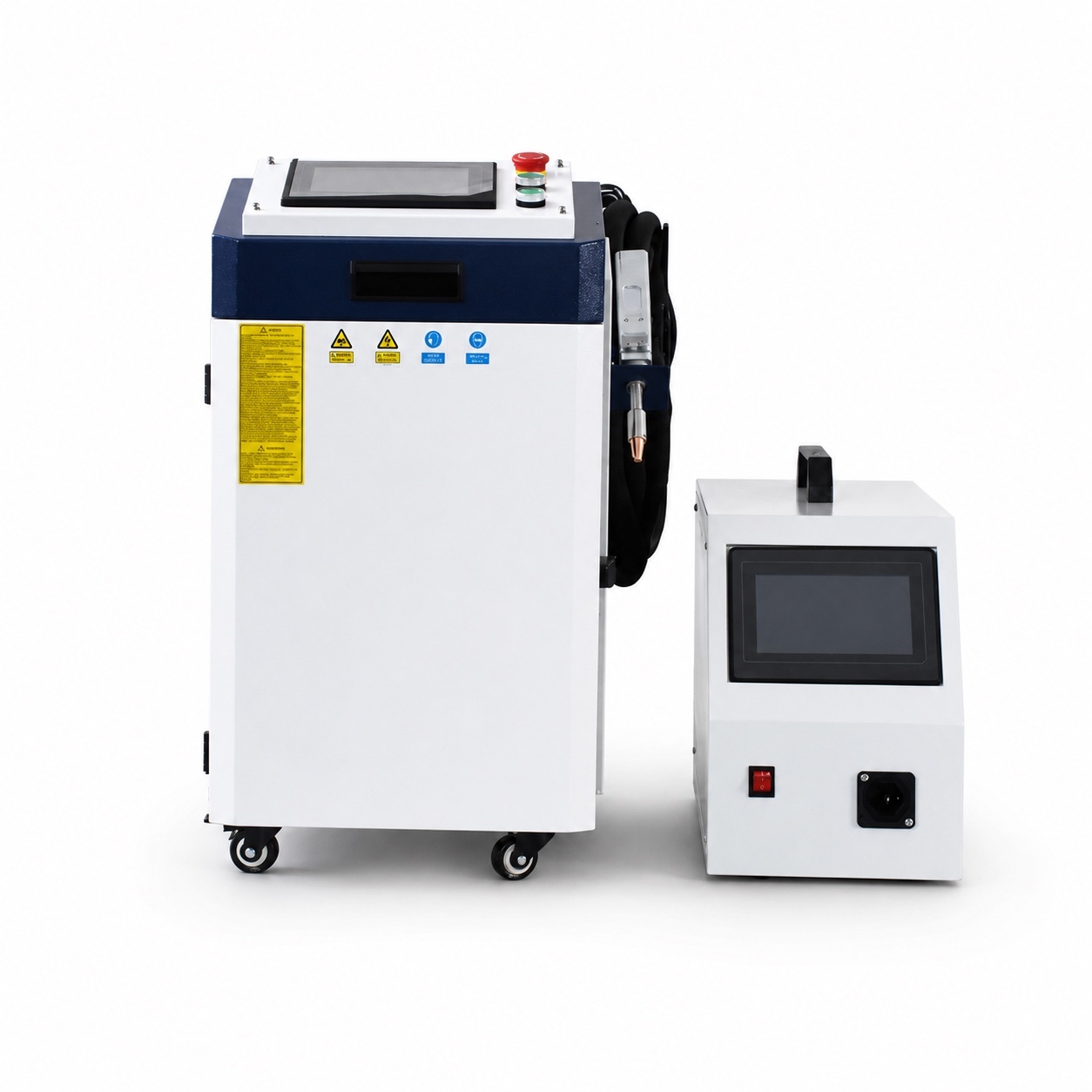

Qintellim QMZN-FLW Series handheld fiber laser welding machines are designed for manual welding of suitable metal workpieces. Available laser output classes include 1000W, 1200W, 1500W, 2000W, 3000W and 6000W, with the final electrical and laser-source configuration confirmed for each order.
QMZN-FLW Series
A water-cooled industrial welding system for manual welding of suitable metal workpieces. Choose the power class, electrical configuration and fiber laser source around the material, joint design, workshop utilities and production requirement.
Buyer Fit
Reliable selection starts with the workpiece, not only the wattage. Send the material grade, thickness range, joint type, seam condition and required output so the proposed model and utilities can be reviewed before quotation.
Confirm material grade, thickness, surface condition, joint access and whether filler wire is required.
Confirm voltage, phase, frequency, shielding gas, ventilation or fume extraction and laser-safety controls.
Confirm weld length, parts per shift, finish requirement and acceptance criteria before selecting the configuration.
Model Selection
| Model | Nominal Laser Output | Typical Power Supply | Selection Note |
|---|---|---|---|
| QMZN-FLW-1000 | 1000 W | 1Ph 220-240V / 50Hz | Lower-power configuration; final suitability depends on the application. |
| QMZN-FLW-1200 | 1200 W | 1Ph 220-240V / 50Hz | Same welding platform with a higher nominal output than the 1000W model. |
| QMZN-FLW-1500 | 1500 W | 1Ph 220-240V or 3Ph 380-415V / 50Hz | Electrical configuration is confirmed according to the order. |
| QMZN-FLW-2000 | 2000 W | 1Ph 220-240V or 3Ph 380-415V / 50Hz | Single-phase or three-phase electrical configuration is confirmed according to the order. |
| QMZN-FLW-3000 | 3000 W | 3Ph 380-415V / 50Hz | Three-phase configuration for higher-output welding applications. |
| QMZN-FLW-6000 | 6000 W | 3Ph 380-415V / 50Hz | Highest nominal output in the current QMZN-FLW range; confirm site electrical and cooling requirements. |
Compliance Documentation

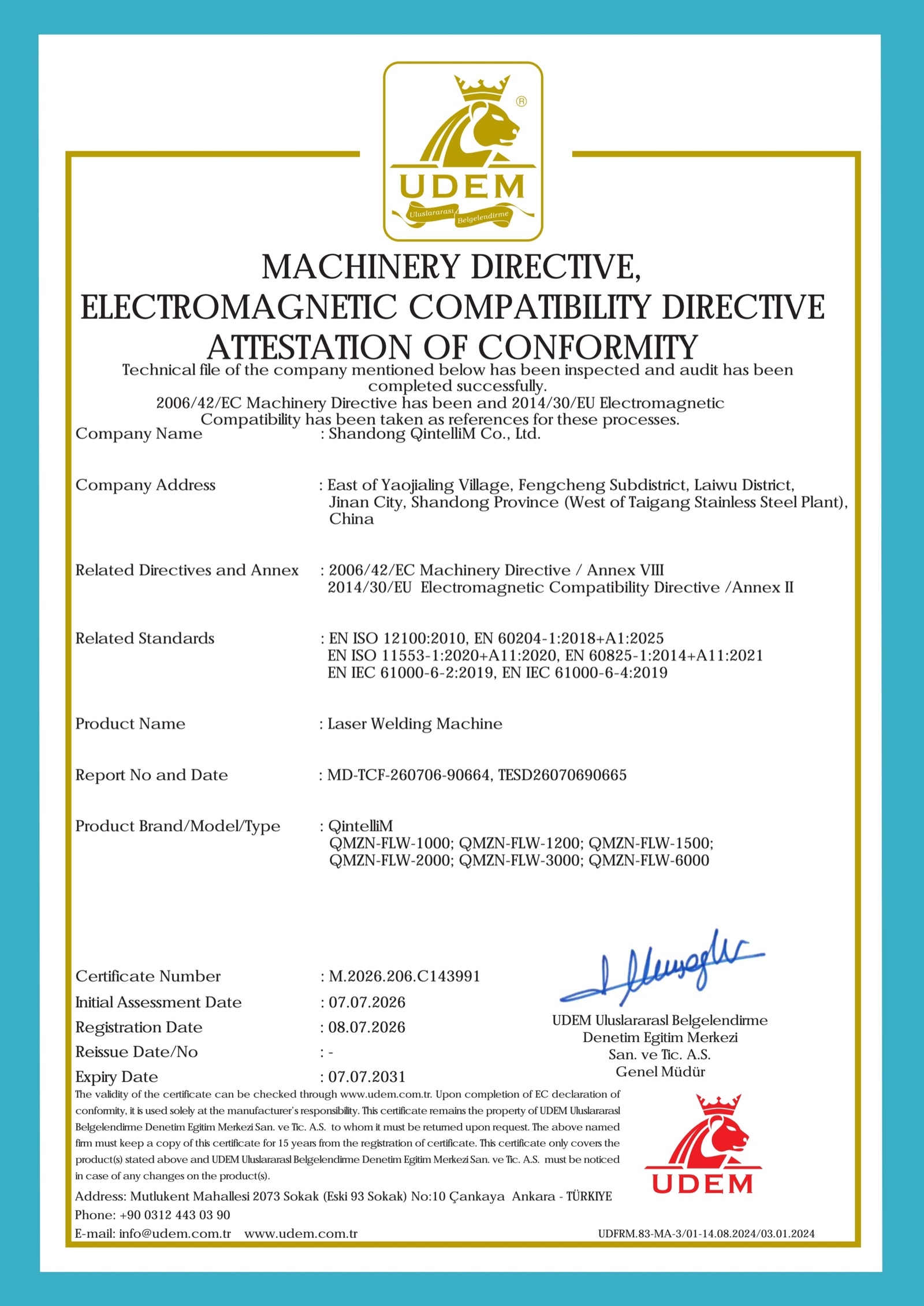

The supplied UDEM attestation identifies Shandong QintelliM Co., Ltd., the Laser Welding Machine product family and the QintelliM QMZN-FLW models. It references Machinery Directive 2006/42/EC, Annex VIII and Electromagnetic Compatibility Directive 2014/30/EU, Annex II.
The delivered machine remains traceable through its model, serial number, nameplate, final EC Declaration of Conformity and order-specific technical documentation.
System Configuration
Materials & Utilities
Typical suitable workpieces may include stainless steel, carbon steel, galvanized steel and aluminum alloy. Final suitability depends on the exact material grade, laser power, joint design, shielding gas, wire selection and required result.
This is high-power industrial laser equipment. Installation and operation require trained personnel, correct grounding, suitable laser protective eyewear, controlled access, barriers or enclosure as required, fire precautions and appropriate ventilation or fume extraction. Final safeguards must follow the delivered configuration and applicable local rules.
Do not assume cleaning or cutting capability. Only the welding function described in the confirmed quotation and technical documentation is included.
Before Ordering
FAQ
Typical suitable workpieces may include stainless steel, carbon steel, galvanized steel and aluminum alloy. Confirm the exact grade, thickness, joint and required result before model selection.
The QMZN-FLW Series includes 1000W, 1200W, 1500W, 2000W, 3000W and 6000W nominal output classes.
Yes. The declared product configuration includes a wire feeder. The wire type, diameter and feed settings are selected according to the workpiece and welding process.
No. This product page covers the welding-only QMZN-FLW platform. Cleaning and cutting are not included.
The 1000W and 1200W models typically use 1Ph 220-240V / 50Hz. The 1500W and 2000W models can be configured for 1Ph 220-240V or 3Ph 380-415V / 50Hz. The 3000W and 6000W models use 3Ph 380-415V / 50Hz. Always follow the delivered machine nameplate and order specification.
Please send the material grade, thickness range, joint type, seam condition, part photos or drawings, production target, workshop power supply and destination country.
Application Review
Send your material, thickness, joint details and part photos. Qintellim will use this information to review the appropriate QMZN-FLW power class, electrical configuration and quotation scope.
