Part of the QintelliM RSW Series — Deburring, Edge Rounding and Surface Finishing Machines. This R-S-R-W configuration has one W station for brushing or polishing with the selected tooling. For separate brushing and polishing processes, evaluate a configuration with two W stations.

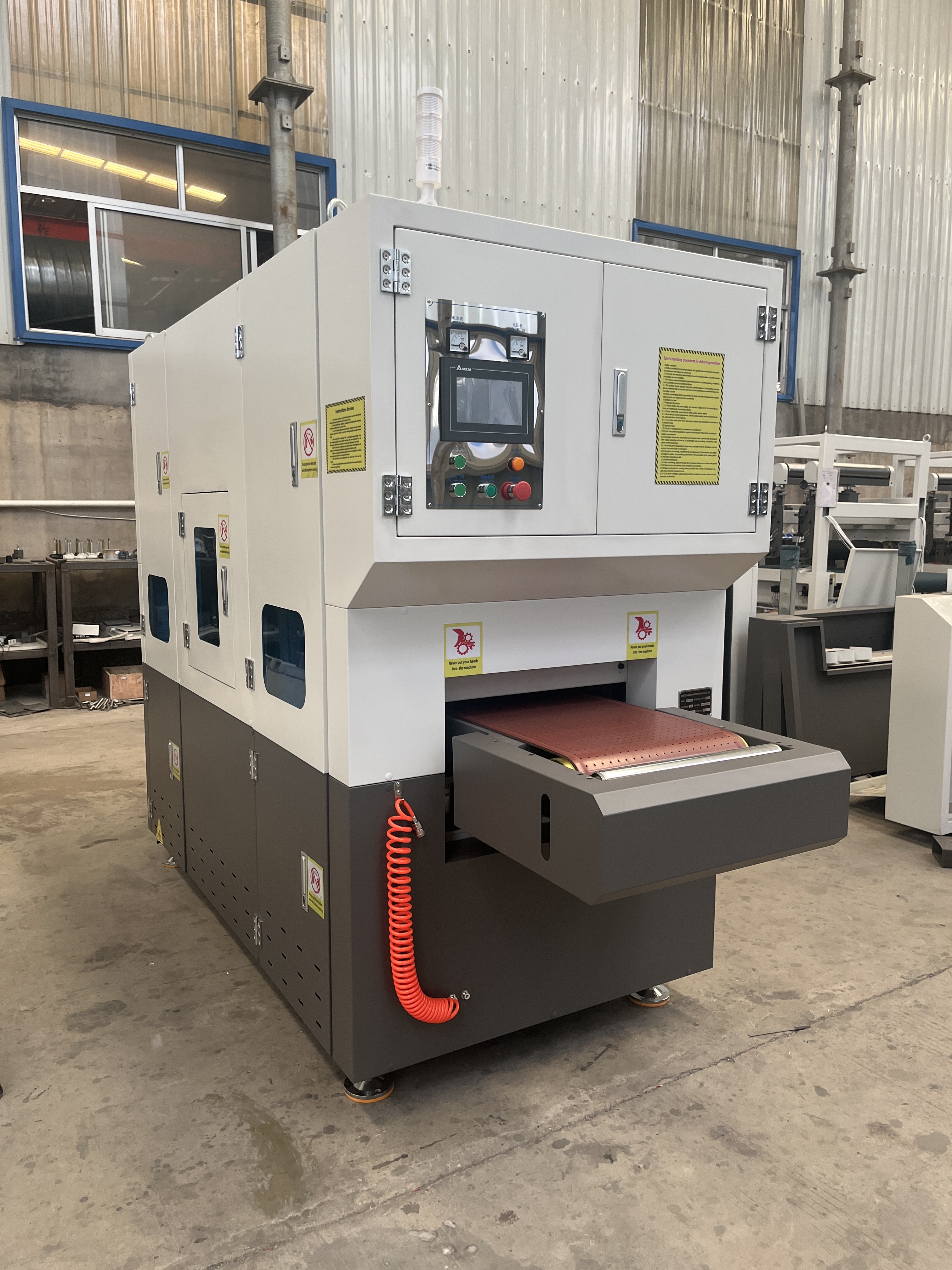

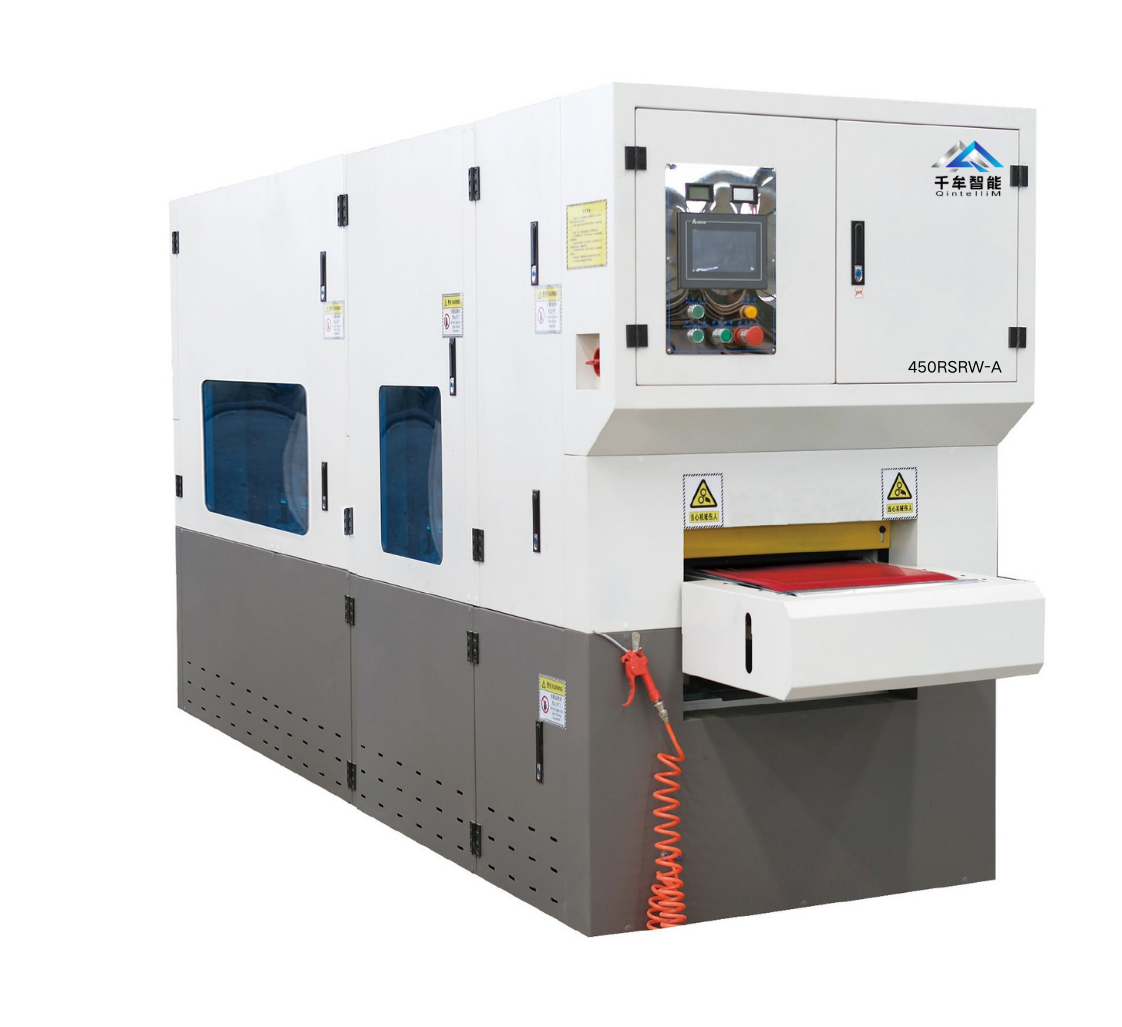

The QintelliM 450RSRW-A is a compact four-station machine for small and medium sheet-metal parts. Its standard R-S-R-W route combines abrasive-belt deburring, rotary roller brush edge rounding, abrasive-belt refinement, and final brushing or polishing in one pass.
It is suitable for workshops that need a flexible all-in-one process in a smaller footprint, especially for non-magnetic, thin, or small workpieces that require vacuum conveyor holding.
| Station | Function | Production Value |
|---|---|---|

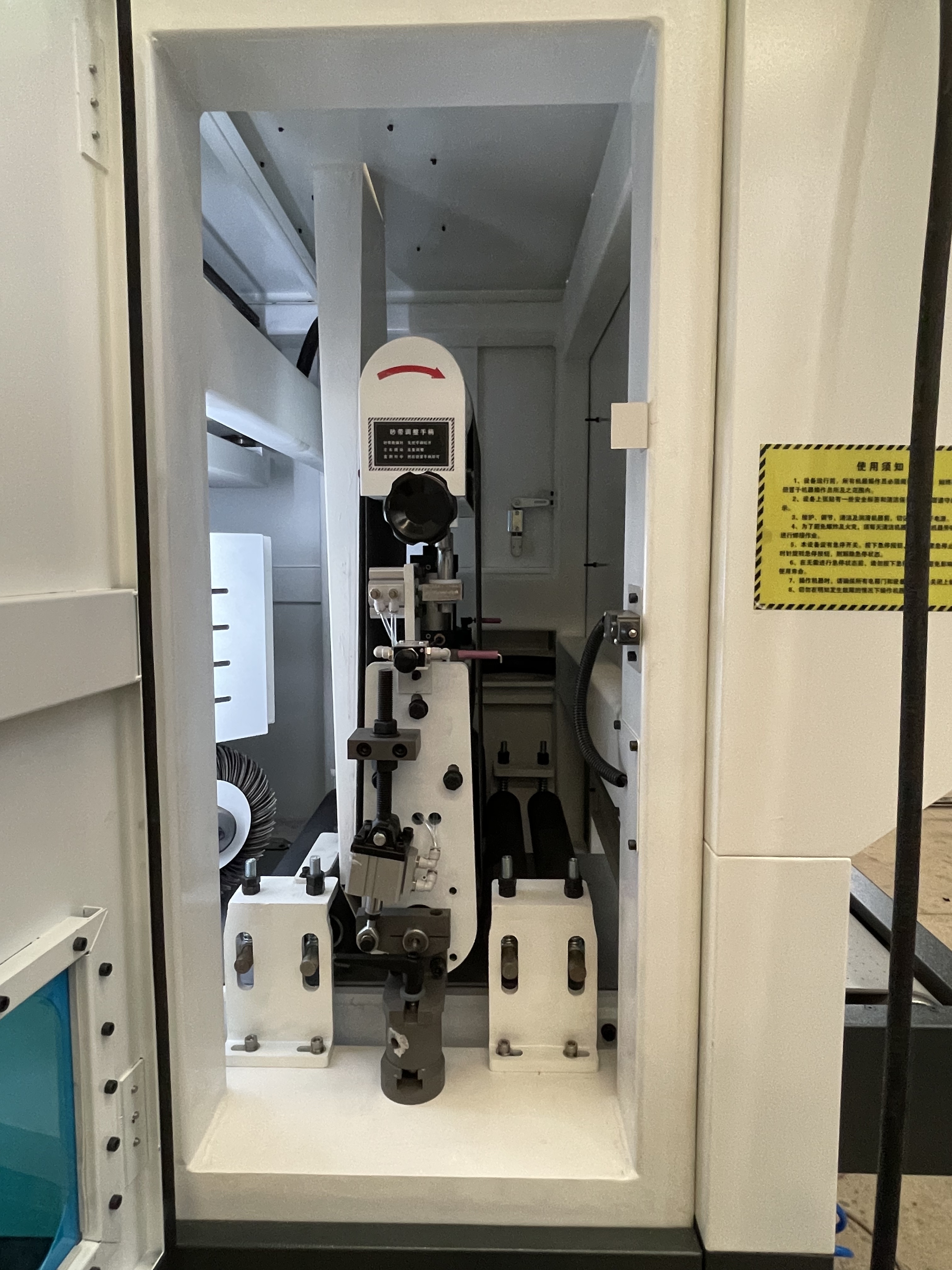

| First R station | Abrasive-belt deburring | Removes primary burrs, scratches, and surface defects. |

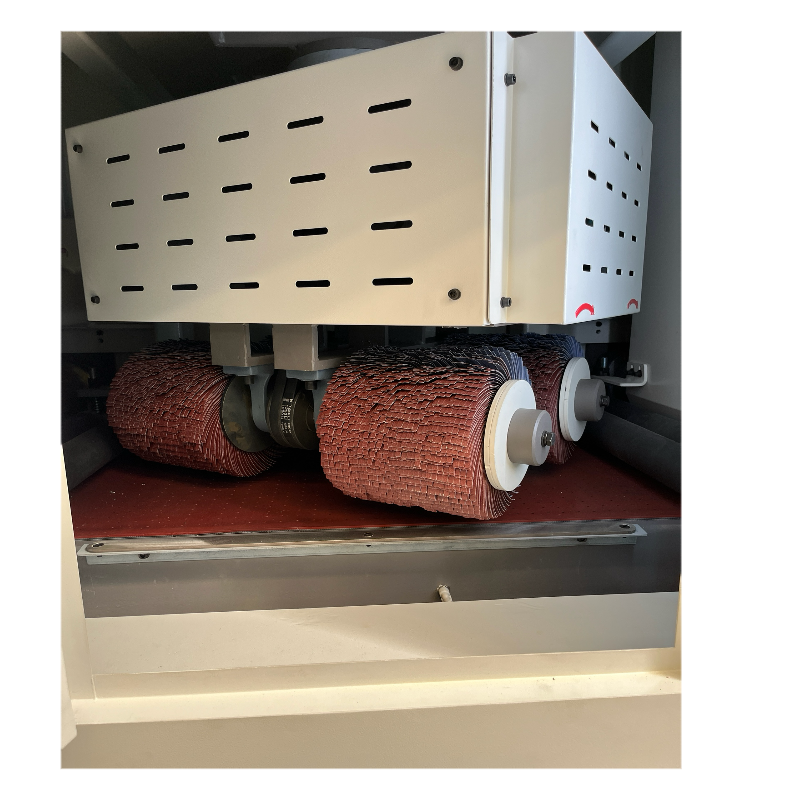

| S station | Rotary roller brush edge rounding | Creates safer and more uniform rounded edges. |
| Second R station | Abrasive-belt refinement | Refines the surface and removes residual marks before final brushing or polishing. |
| W station | Brushing / polishing | Creates the specified final surface texture and finish consistency. |

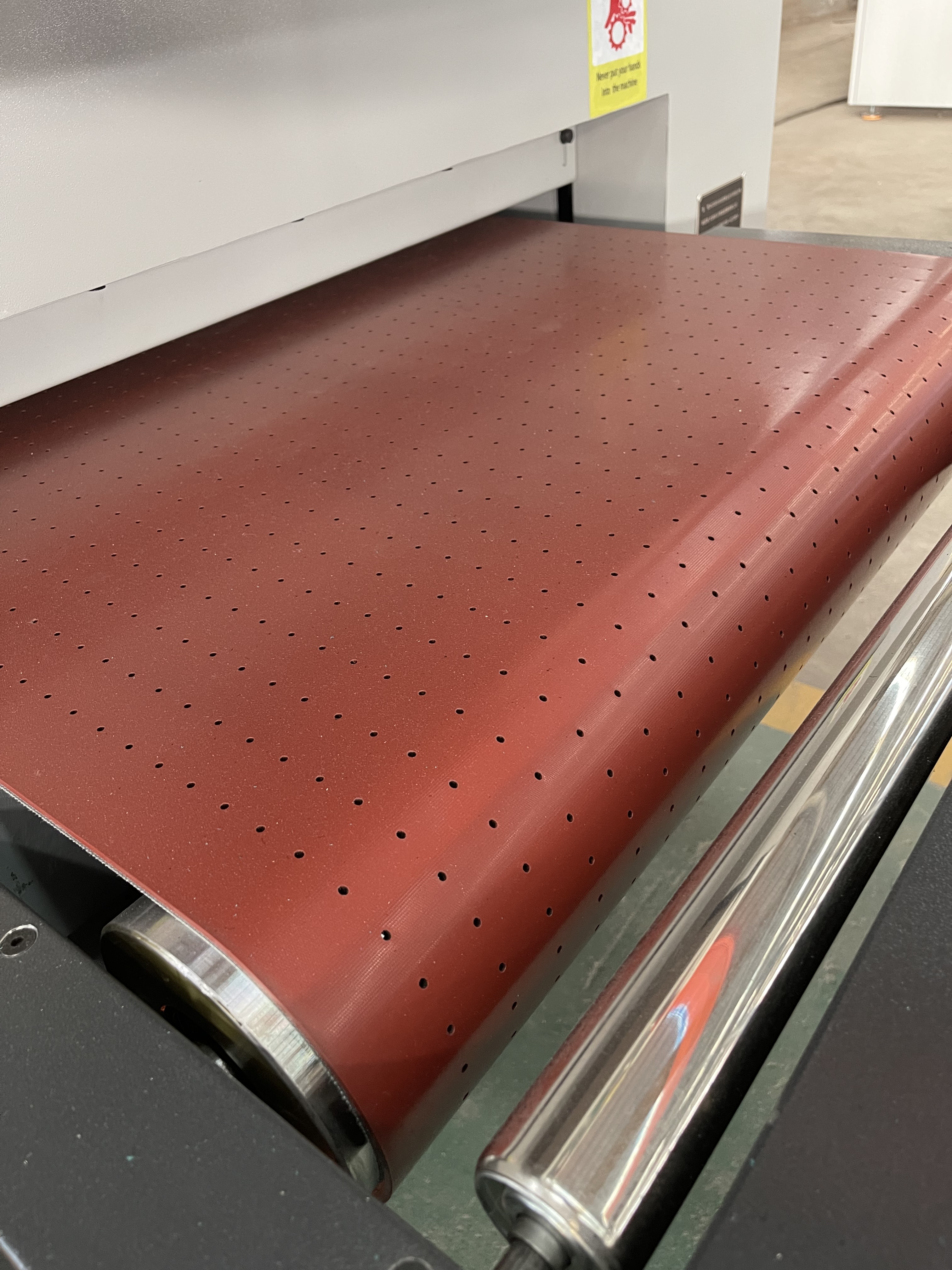

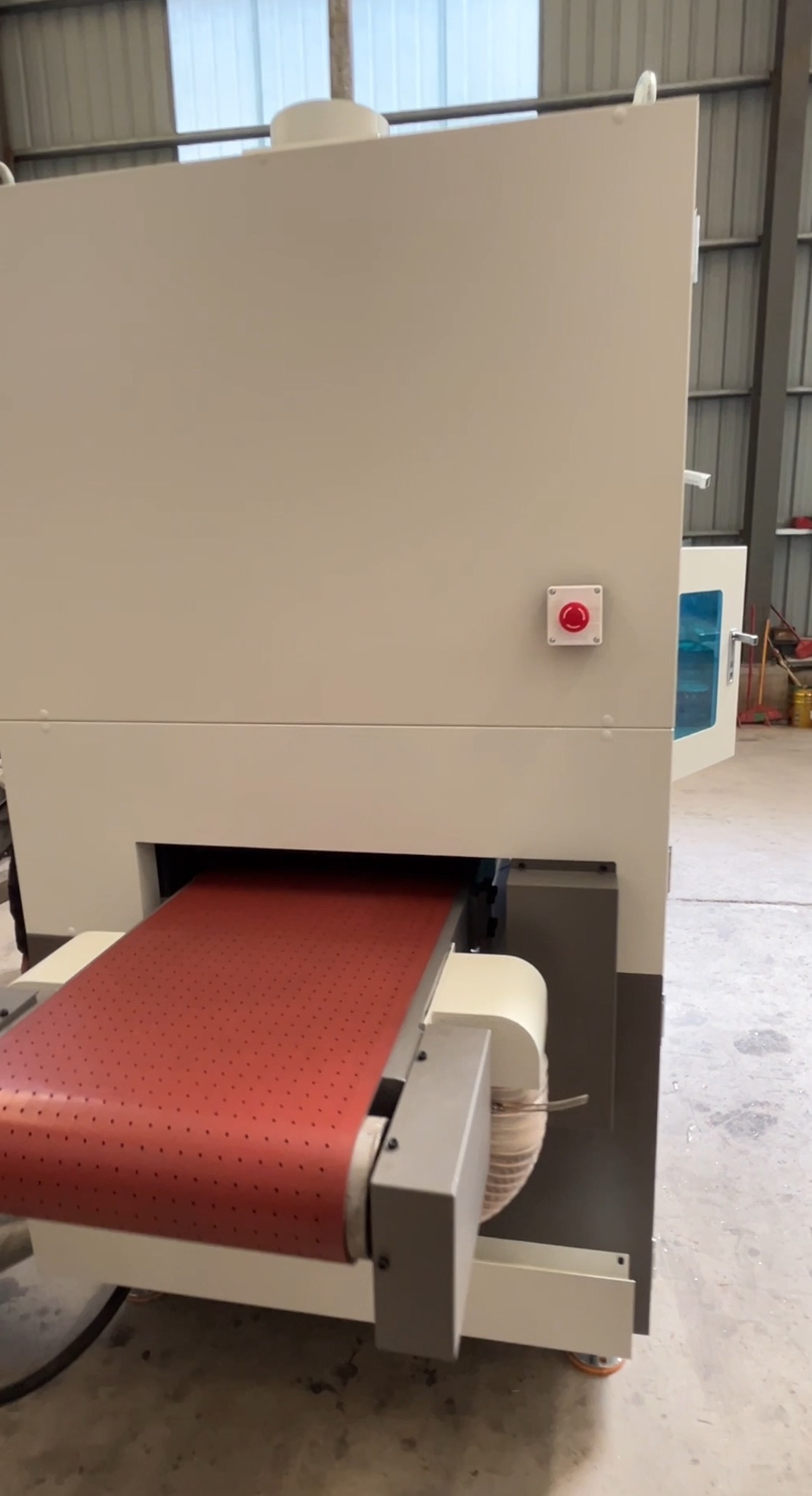

| A conveyor | Vacuum conveyor platform | Helps hold non-magnetic, thin, or small workpieces during processing. |
| Item | Specification |
|---|---|
| Model | 450RSRW-A |
| Machine type | Compact deburring, edge-rounding, brushing, and finishing machine |
| Nominal working width | 450 mm |
| Process route | R-S-R-W |
| Conveyor platform | A vacuum conveyor platform |
| Typical applications | Burr removal, edge rounding, surface brushing, pre-finishing |
| Common materials | Stainless steel, aluminum, carbon steel, copper, brass, and mixed sheet metal |
| Customization | Abrasive belt, brush type, finishing roller, conveyor setup, dust collection, and voltage |
Final specifications are confirmed according to material, workpiece size, burr condition, edge-radius target, surface requirement, and conveyor holding requirement.
Please share material, part size range, thickness, smallest workpiece size, cutting process, burr condition, edge-radius target, surface-finish requirement, production volume, voltage, and dust-collection requirement.
Standard control configuration: Siemens PLC with Schneider electrical components. Final control functions, operator interface and electrical specifications are confirmed according to the selected machine configuration and destination-market requirements.
