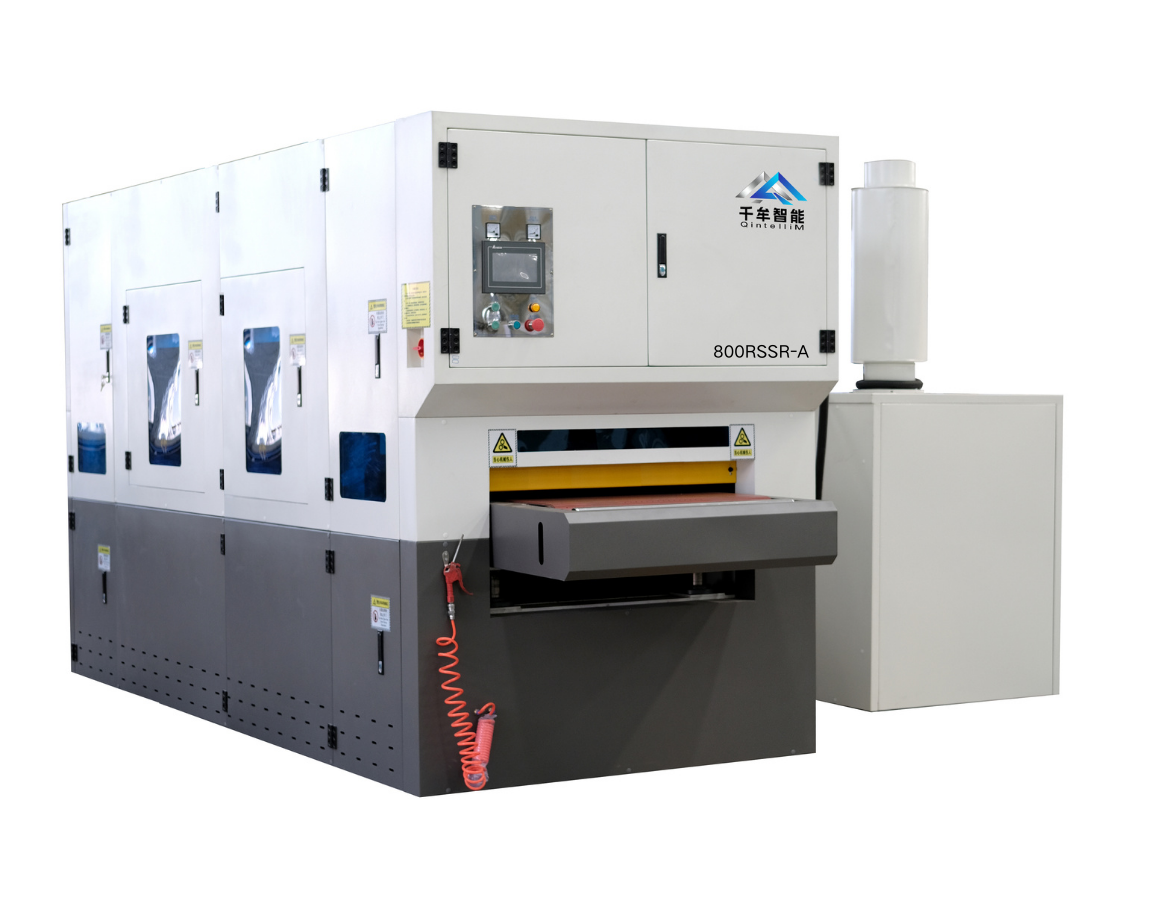

800RSSR-A Four-Station Deburring & Edge Rounding Machine

No.800RSSR-A

QintelliM 800RSSR-A is a four-station R-S-S-R configuration in the RS Series. It combines two R abrasive-belt stations and two S edge-rounding stations with an A vacuum conveyor platform for sheet-metal deburring, edge rounding and final surface refinement.

  • 800RSSR-A R-S-S-R Deburring & Edge Rounding Machine | QintelliM

Description

800RSSR-A Four-Station Deburring & Edge Rounding Machine

Part of the QintelliM RS Series — Deburring and Edge Rounding Machines. This R-S-S-R configuration has two R abrasive-belt stations and two S edge-rounding stations; it is not a pure S or SS machine.

The QintelliM 800RSSR-A follows a four-station R-S-S-R route: abrasive-belt deburring, two edge-rounding stations using rotary roller brush tooling, and a final abrasive-belt step. The configuration combines burr removal, edge rounding and surface refinement.

The vacuum conveyor platform helps support small, thin, or non-magnetic parts during multi-stage deburring and finishing.

Best For

  • Laser-cut, punched, stamped, and machined sheet-metal parts.
  • Parts requiring stronger edge rounding or a more stable edge rounding result.
  • Small, thin, or non-magnetic workpieces that need vacuum conveyor holding.
  • Workshops that need repeatable edge quality before coating, assembly, or handling.

Process Configuration

Station Function Production Value
R station 1 Abrasive-belt grinding Removes burrs and levels the surface before edge rounding.
S station 1 First edge-rounding station Starts controlled edge breaking and edge rounding.
S station 2 Second edge-rounding station Improves radius consistency and edge coverage.
Final R station Surface refinement grinding Supports a cleaner final finish.
A conveyor Vacuum conveyor platform Helps hold small, thin, or non-magnetic workpieces.

Technical Specifications

Item Specification
Model 800RSSR-A
Machine type Grinding, dual edge-rounding, and finishing machine
Nominal working width 800 mm
Process route R-S-S-R
Conveyor platform A vacuum conveyor platform
Typical applications Burr removal, dual edge rounding, edge rounding, surface refinement
Common materials Stainless steel, aluminum, carbon steel, copper, brass, and mixed sheet metal
Customization Brush type, abrasive belt grit, conveyor setup, dust collection, working width, and voltage

Final specifications depend on material, workpiece size, burr condition, target edge radius, required finish, and holding method.

Available Options

  • Different abrasive-belt and brush specifications.
  • Alternative conveyor platform according to material and workpiece size.
  • Custom dust-collection matching for dry deburring.
  • Sample testing to confirm edge radius and surface result.

Quotation Checklist

Please share material, part dimensions, thickness, cutting process, burr condition, required edge radius, surface finish, smallest workpiece size, production volume, voltage, and dust-collection requirement.

Standard Control Configuration

Standard control configuration: Siemens PLC with Schneider electrical components. Final control functions, operator interface and electrical specifications are confirmed according to the selected machine configuration and destination-market requirements.
