RSR Deburring, Edge Rounding & Finishing Machine

No.800RSR-A-M
QintelliM 800RSR-A-M is a deburring, edge rounding, and finishing composite machine for sheet-metal deburring and surface preparation. It combines abrasive-belt deburring, edge rounding, and final surface refinement with a dual conveyor platform for mixed materials and changing production requirements.
  • 800RSR-A-M Deburring & Edge Rounding Machine | QintelliM
  • 800RSR-A-M Deburring & Edge Rounding Machine | QintelliM
  • 800RSR-A-M Deburring & Edge Rounding Machine | QintelliM
  • 800RSR-A-M Deburring & Edge Rounding Machine | QintelliM
  • 800RSR-A-M Deburring & Edge Rounding Machine | QintelliM
  • 800RSR-A-M Deburring & Edge Rounding Machine | QintelliM
  • 800RSR-A-M Deburring & Edge Rounding Machine | QintelliM
  • 800RSR-A-M Deburring & Edge Rounding Machine | QintelliM

Description

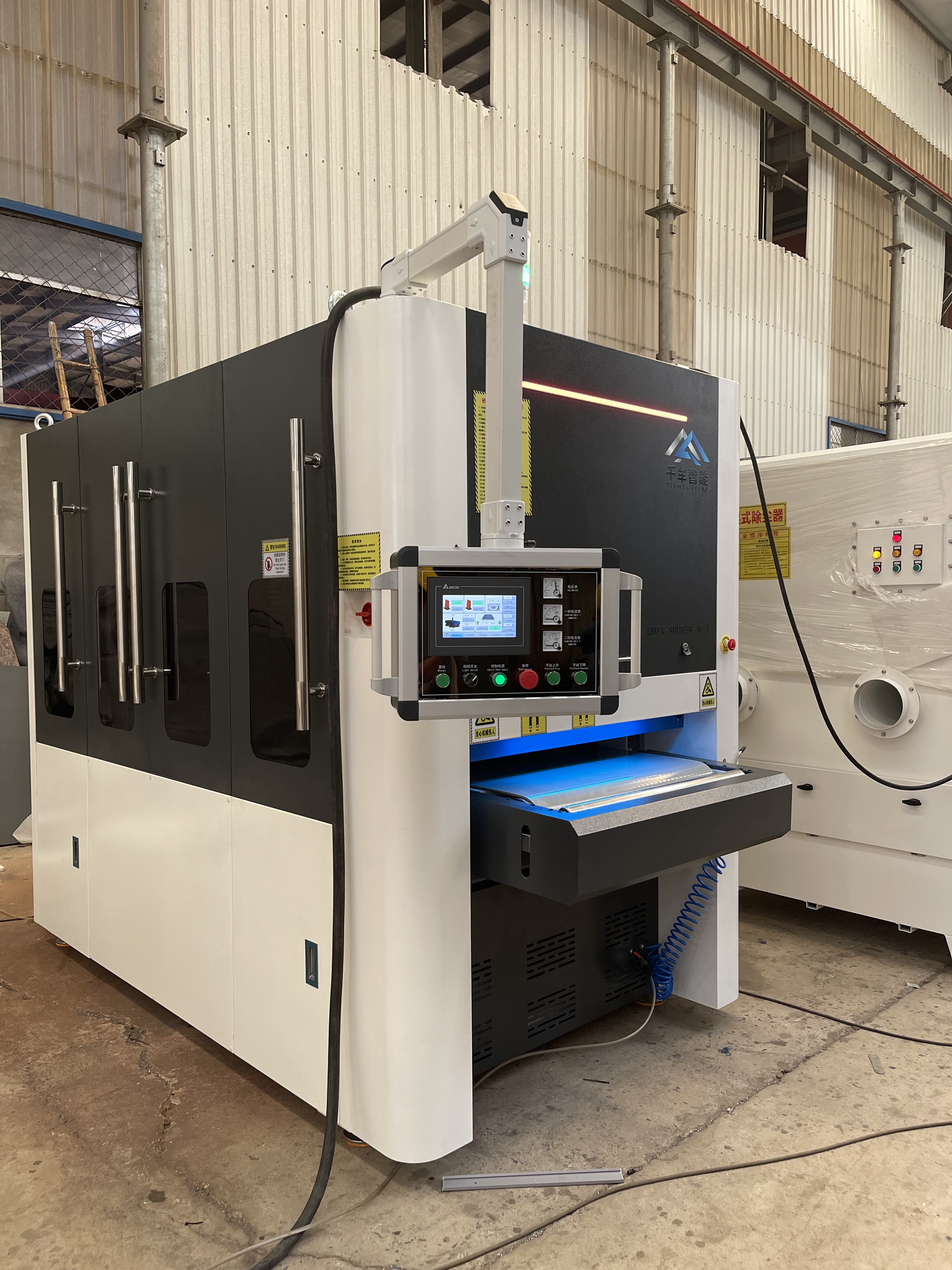

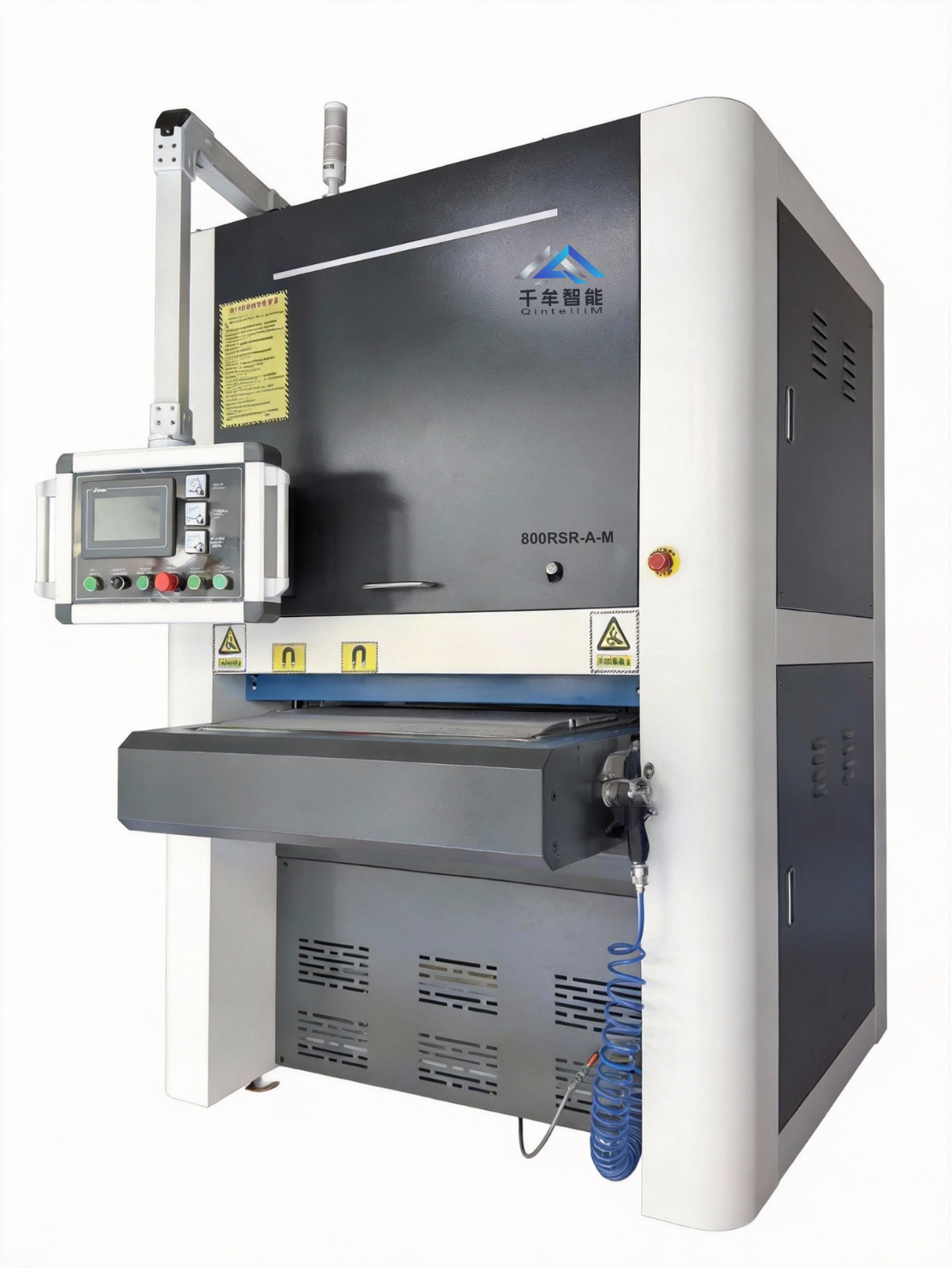

800RSR-A-M Deburring, Edge-Rounding & Finishing Machine

Part of the QintelliM RS Series — Deburring and Edge Rounding Machines. Compare this R-S-R configuration with R-R-S and other R/S station arrangements in the family selection guide.

The QintelliM 800RSR-A-M combines abrasive-belt deburring, edge rounding, and final surface refinement in one automated process. It is suitable for sheet-metal parts that require burr removal, safer edges, and cleaner surface preparation.

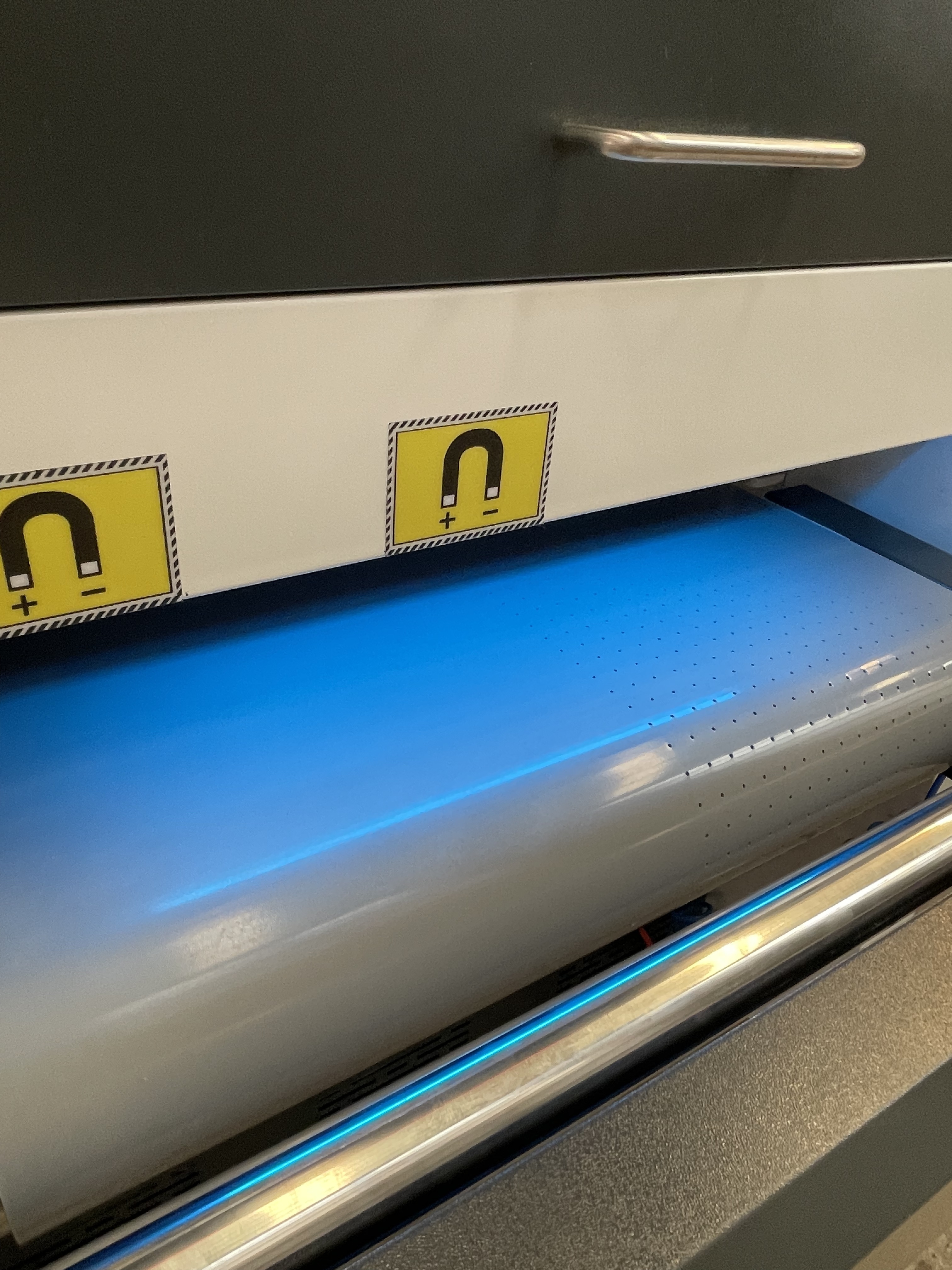

The A-M dual conveyor platform supports mixed production by combining vacuum and magnetic holding options for different materials and workpiece sizes.

Best For

  • Laser-cut, punched, stamped, and machined sheet-metal parts.
  • Mixed material production with both magnetic and non-magnetic workpieces.
  • Parts requiring deburring, edge rounding, and final surface refinement.
  • Workshops that need a flexible composite process for changing orders.

Process Configuration

Station Function Production Value

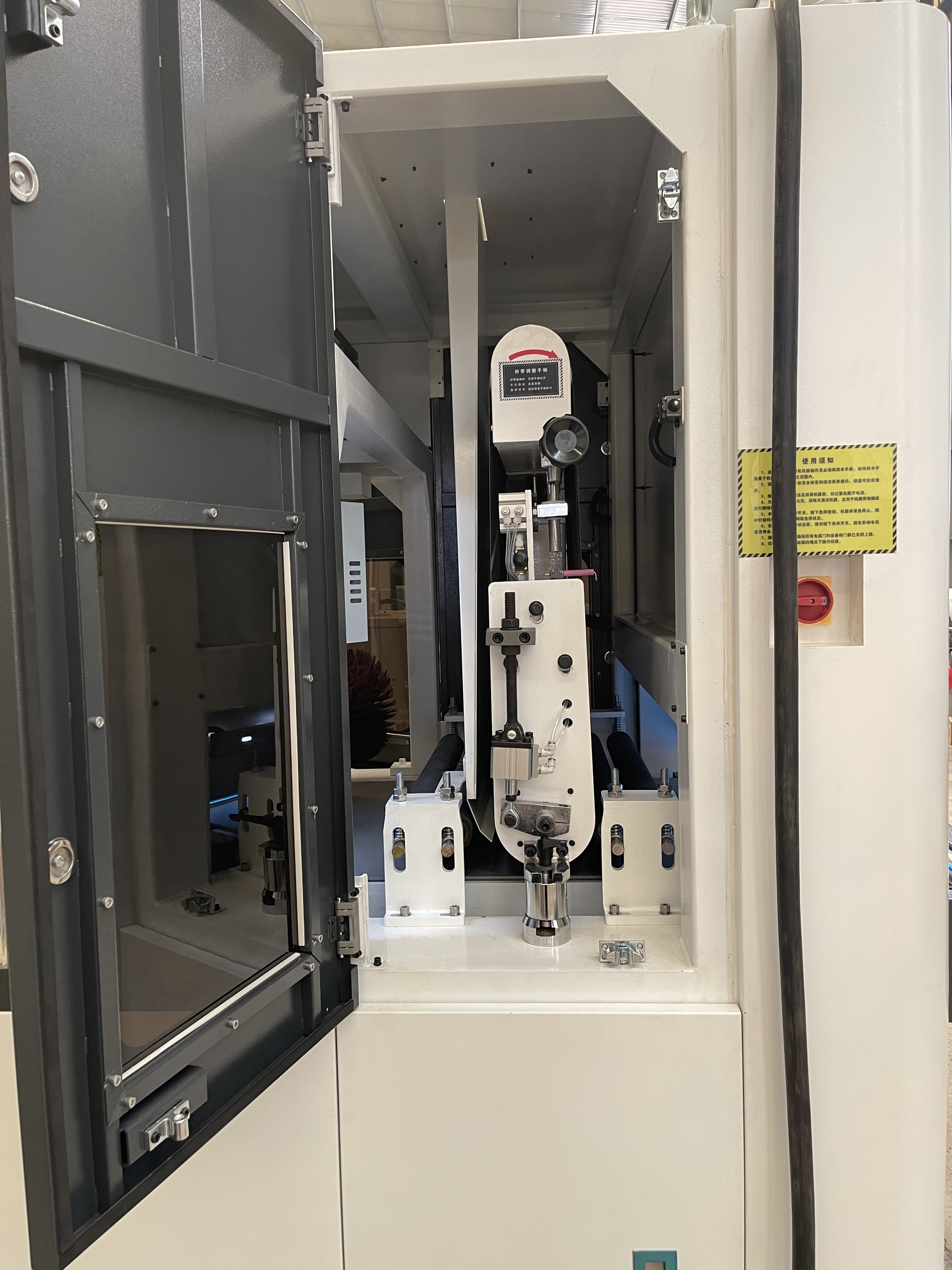

First R station Abrasive-belt deburring Removes burrs, scratches, and surface defects.

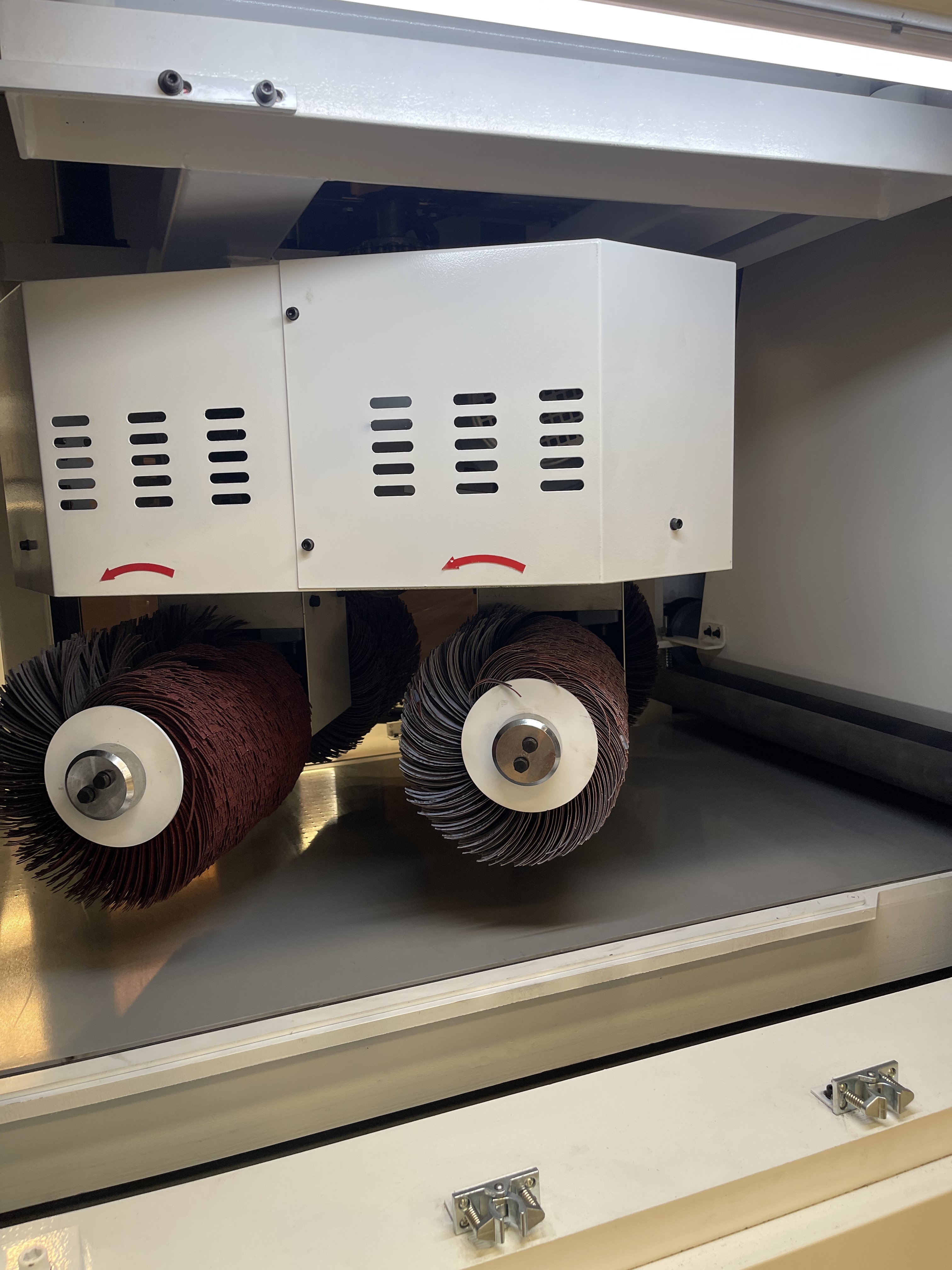

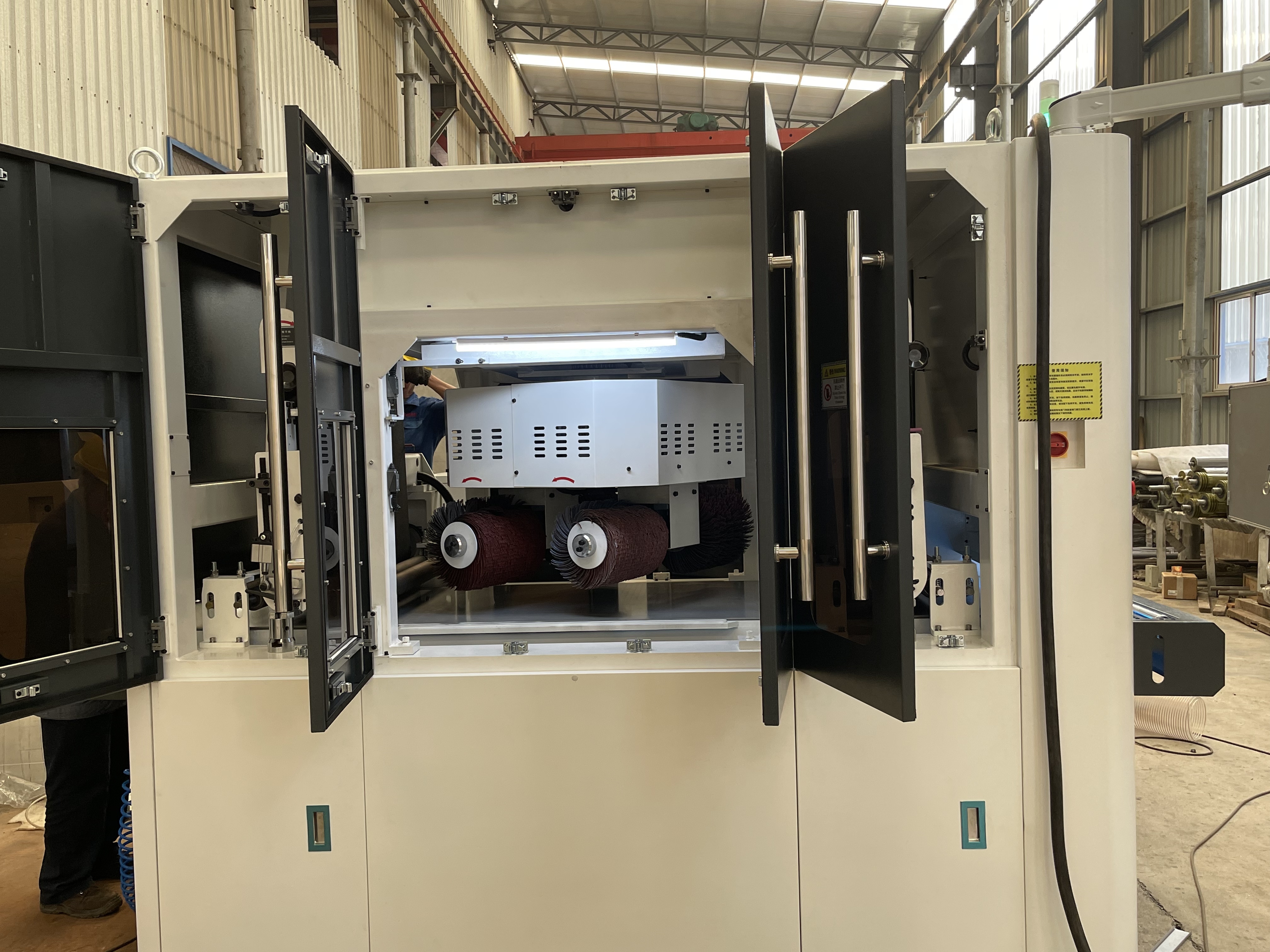

S station Edge rounding / edge rounding Creates safer and more uniform rounded edges.
Final R station Final grinding / surface refinement Improves finish consistency after edge rounding.
A-M conveyor Dual conveyor platform Supports both vacuum and magnetic holding according to workpiece needs.

Technical Specifications

Item Specification
Model 800RSR-A-M
Machine type Grinding, edge rounding, and final surface refinement composite machine
Nominal working width 800 mm
Process route R-S-R
Conveyor platform A-M dual conveyor platform
Typical applications Deburring, edge rounding, surface grinding, final refinement
Common materials Carbon steel, stainless steel, aluminum, copper, brass, and mixed sheet metal
Customization Abrasive-belt grit, brush type, conveyor setup, dust collection, working width, automation, and voltage

Final configuration is confirmed according to material mix, workpiece size, burr condition, edge-radius target, surface finish, and conveyor holding requirement.

Available Options

  • A vacuum, M magnetic, or A-M dual conveyor platform.
  • Different abrasive-belt and brush specifications.
  • Custom working width, dust collection, and line integration.
  • Representative sample testing for final configuration confirmation.

Quotation Checklist

Please share material, part size range, thickness, cutting process, burr condition, target edge radius, required surface finish, smallest workpiece size, production volume, voltage, and dust-collection requirement.

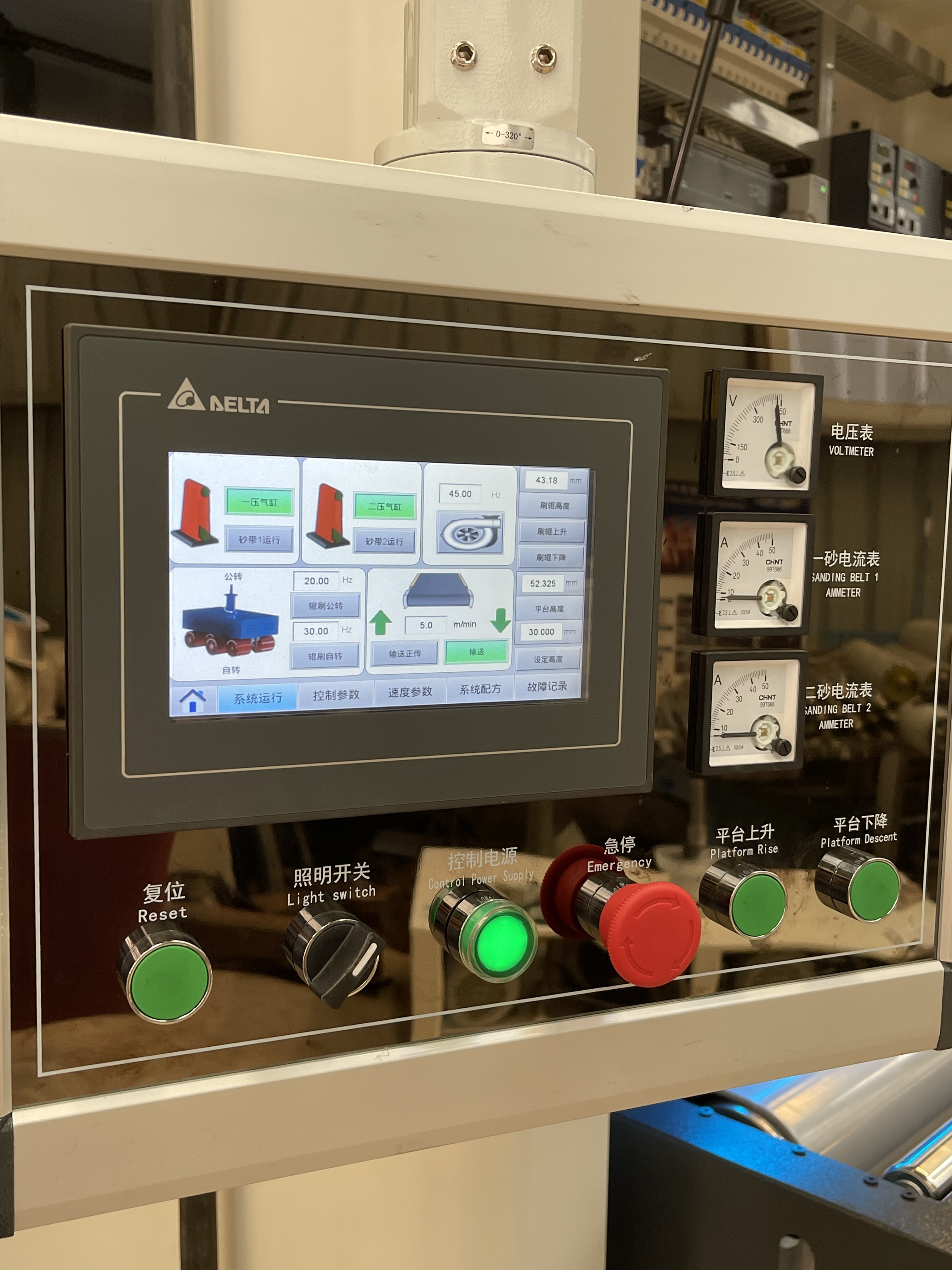

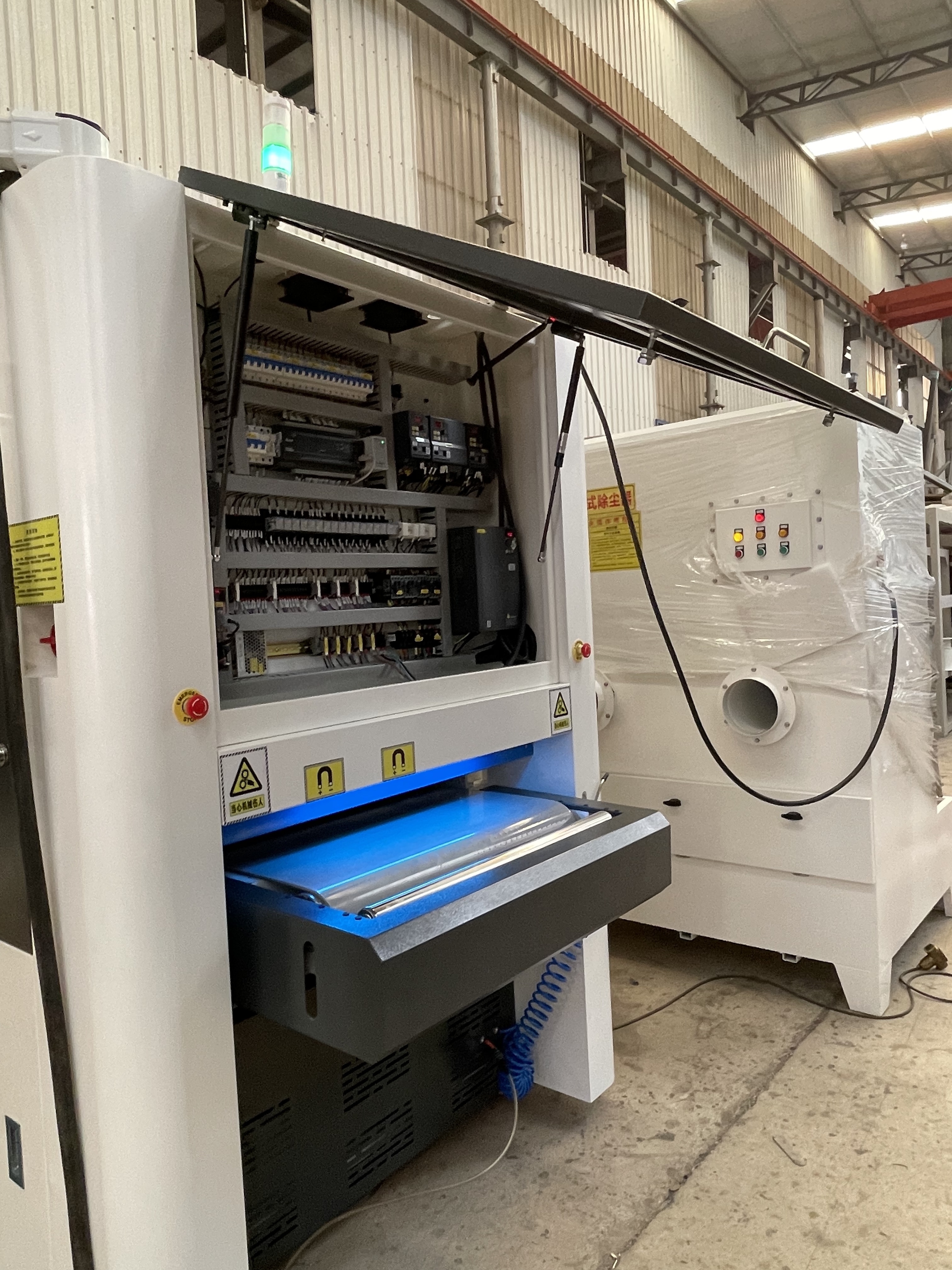

Standard Control Configuration

Standard control configuration: Siemens PLC with Schneider electrical components. Final control functions, operator interface and electrical specifications are confirmed according to the selected machine configuration and destination-market requirements.
